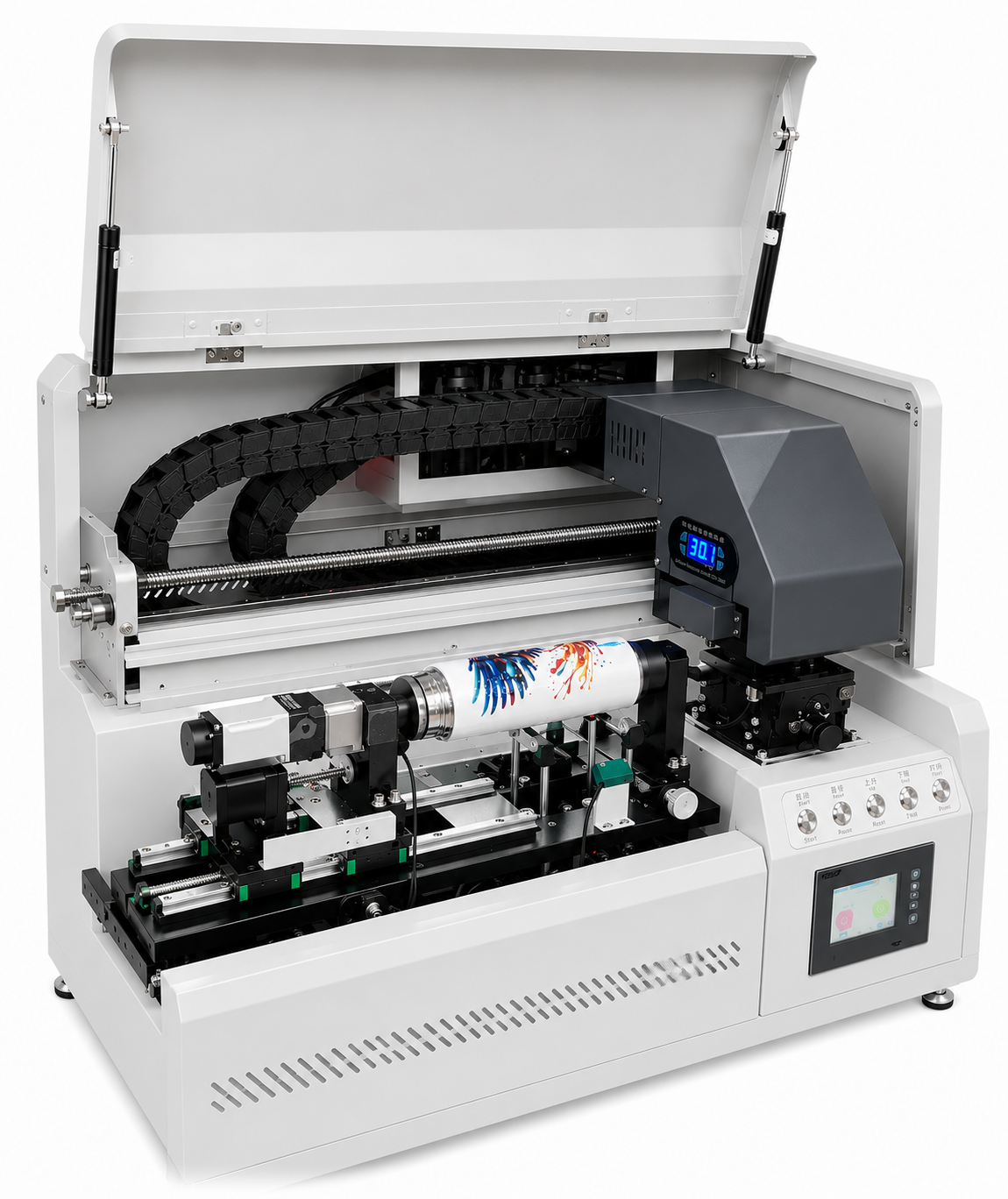

Compact 360° UV Printing for Custom Bottles, Tumblers and Gifts

The Raycolor desktop cylindrical UV printer is designed for personalized product businesses, print shops and short-run production. It prints seamless full-wrap graphics with color, white and varnish on common cylindrical and tapered objects while keeping the footprint compact and operation straightforward.

Compact FootprintFlexible placement for shops, studios and small production spaces.

One-Piece CustomizationNo plate making and no minimum order requirement.

White & Varnish EffectsPrint on dark or transparent products and add premium gloss or texture.

Why Choose This Desktop Cylinder UV Printer?

Seamless 360° rotary printing: create full-wrap graphics without visible seams or overlap.

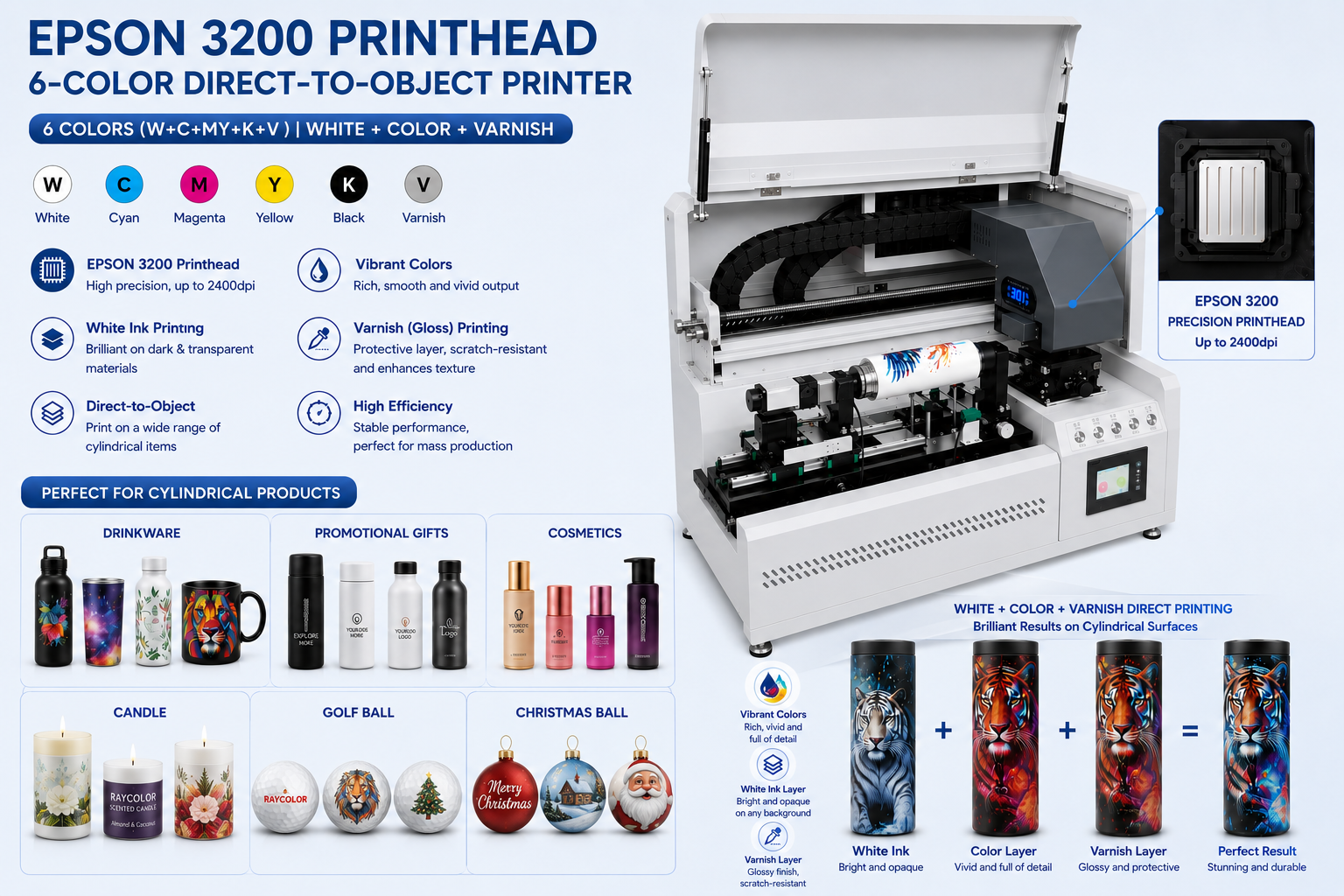

Flexible printhead options: choose Epson 3200U1HD or Epson 1600 based on your requirements.

Easy daily operation: automatic cleaning, humidification and wiping reduce routine maintenance.

Wide application range: print on glass, metal, plastic, ceramics and other tested materials.

Premium decoration effects: white ink and varnish support dark products, transparent vessels and embossed designs.

Cleaner workspace: mist extraction helps reduce airborne ink particles and buildup.

Key Specifications

Review the most important production parameters below, then expand the complete technical table when you need installation and operating details.

Print SizeØ42-145 mmUp to 300 mm long

Print ModeCMYK + White + VarnishSingle workflow

ResolutionUp to 720 × 1200 dpi5 pl ink drop

Machine Size940 × 605 × 691 mmCompact benchtop design

See All Details

Category	Specification	Details
Print System	Printhead model	Epson 3200U1HD / Epson 1600
	Printhead quantity	1 pc
	Print resolution	720 × 900 / 720 × 1200 dpi
	Ink drop	5 pl
	Print speed	About 60 seconds per piece, depending on artwork and settings
	Print mode	Color, white and varnish
	Ink configuration	C, M, Y, K, W, V
Machine Parameters	Print diameter	42-145 mm
	Print length	0-240 / 300 mm
	Print taper	Up to 13°
	High-drop printing	2-13 mm
	Curing system	LED UV lamp
	Ink	VOC-free UV-curable ink
	RIP software	RIIN
	Operating system	Windows 7 / 10 / 11
	Materials	Glass, metal, plastic, ceramics and more, subject to adhesion testing
	Typical products	Bottles, tumblers, cups, flasks, cans, candles and selected special shapes
Dimensions	Machine size	940 × 605 × 691 mm
	Packing size	1450 × 680 × 900 mm
	Net/gross weight	75 / 120 kg
Operating Requirements	Power supply	AC 220/110 V, 10 A, 50-60 Hz
	Power	1200 W
	Temperature	20-30°C
	Humidity	30-60%
	Environment	Clean, low-dust indoor environment

Request a Sample Test and Recommendation

For an accurate quotation, please share your product material, diameter, length, taper angle, artwork coverage and expected daily output. Sample testing is recommended to confirm adhesion and print quality before production.

Machine Gallery

See the Printer, Features and Finished Results

View the compact machine design, rotary printing capabilities, supported materials and real application examples. Images are displayed at a larger size so production details and printed textures are easier to evaluate.

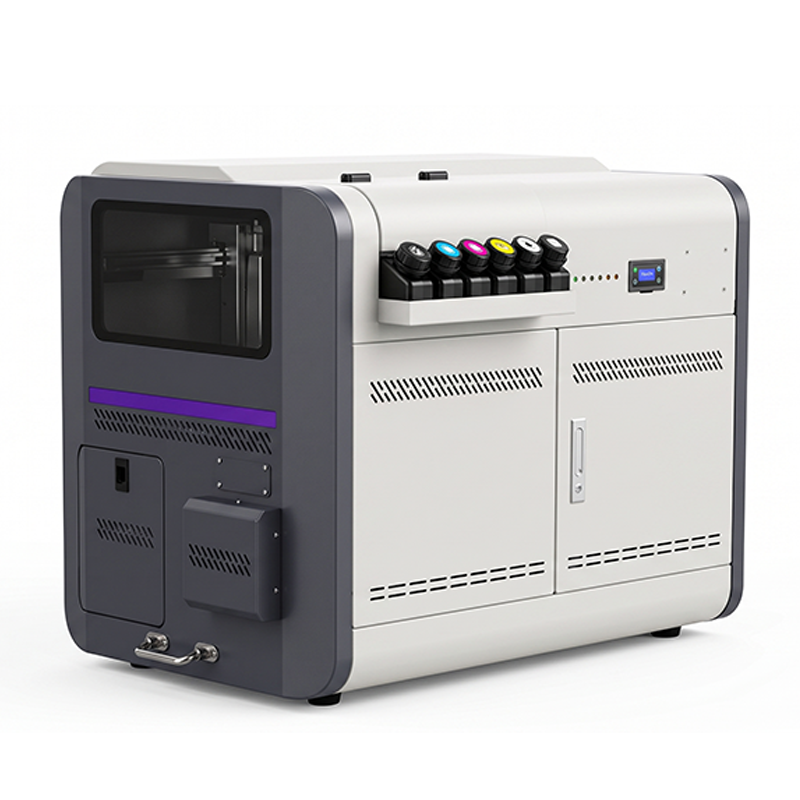

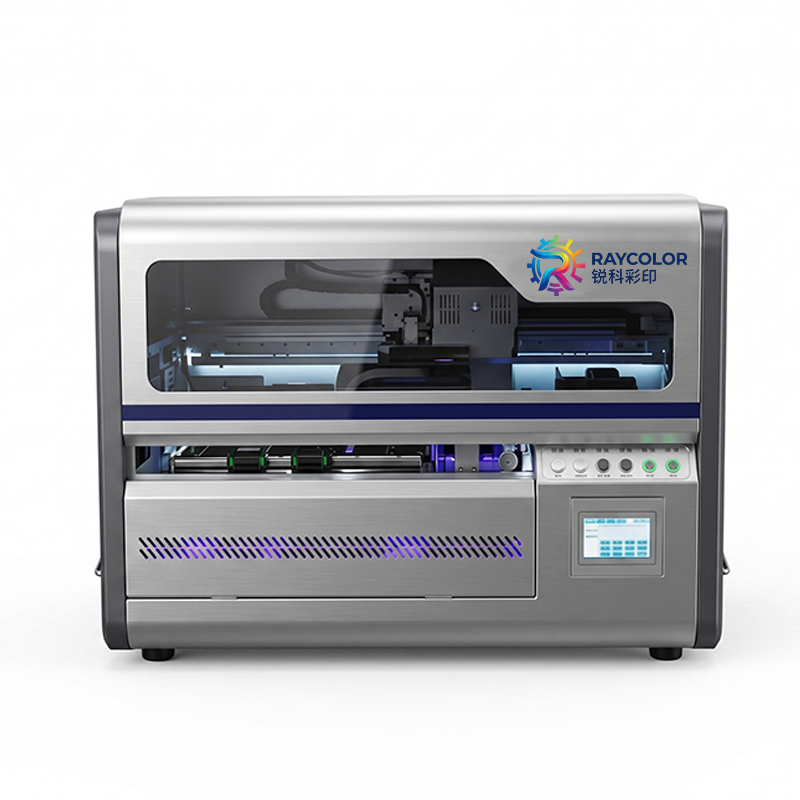

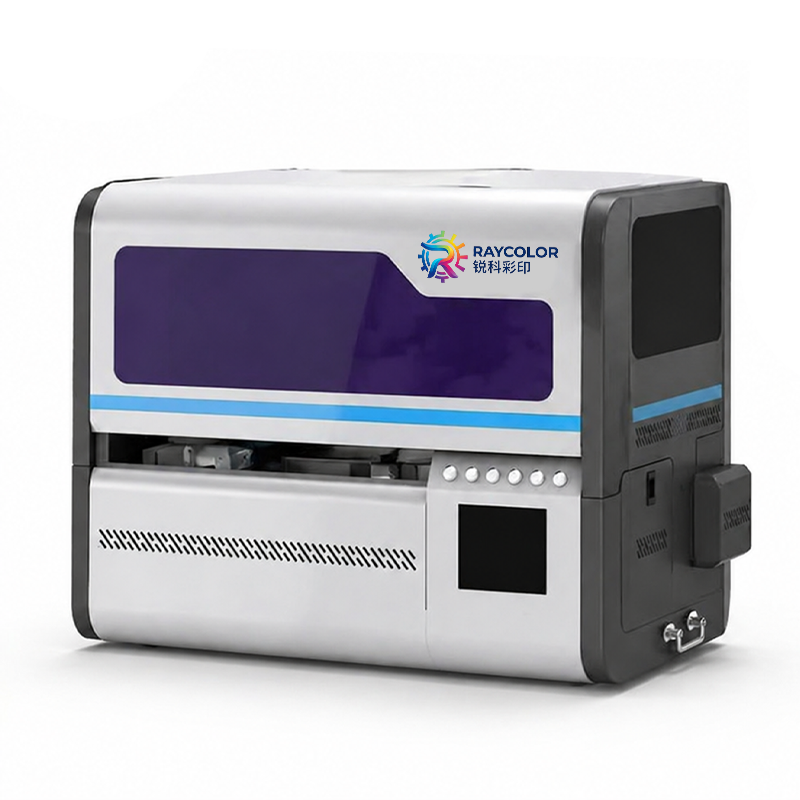

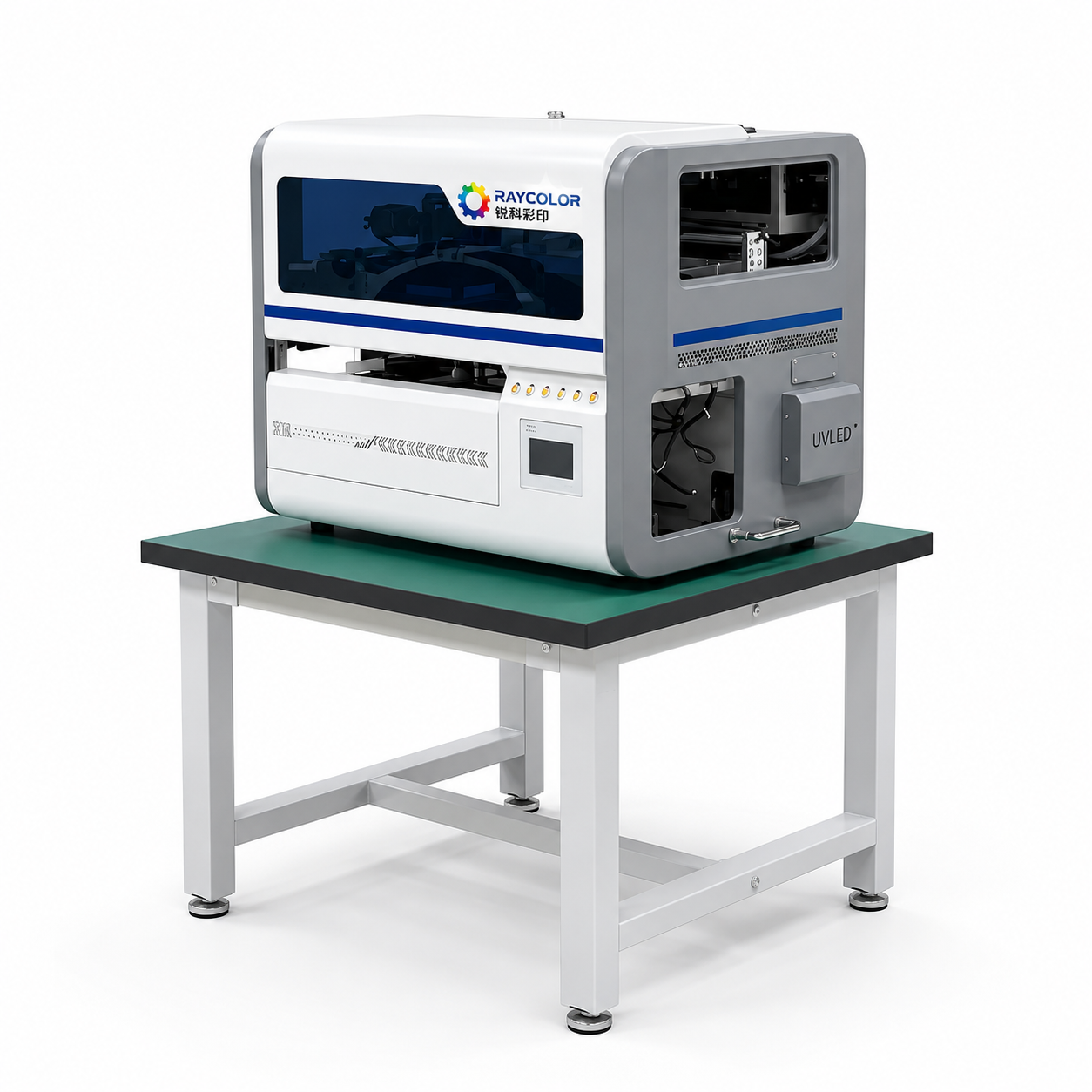

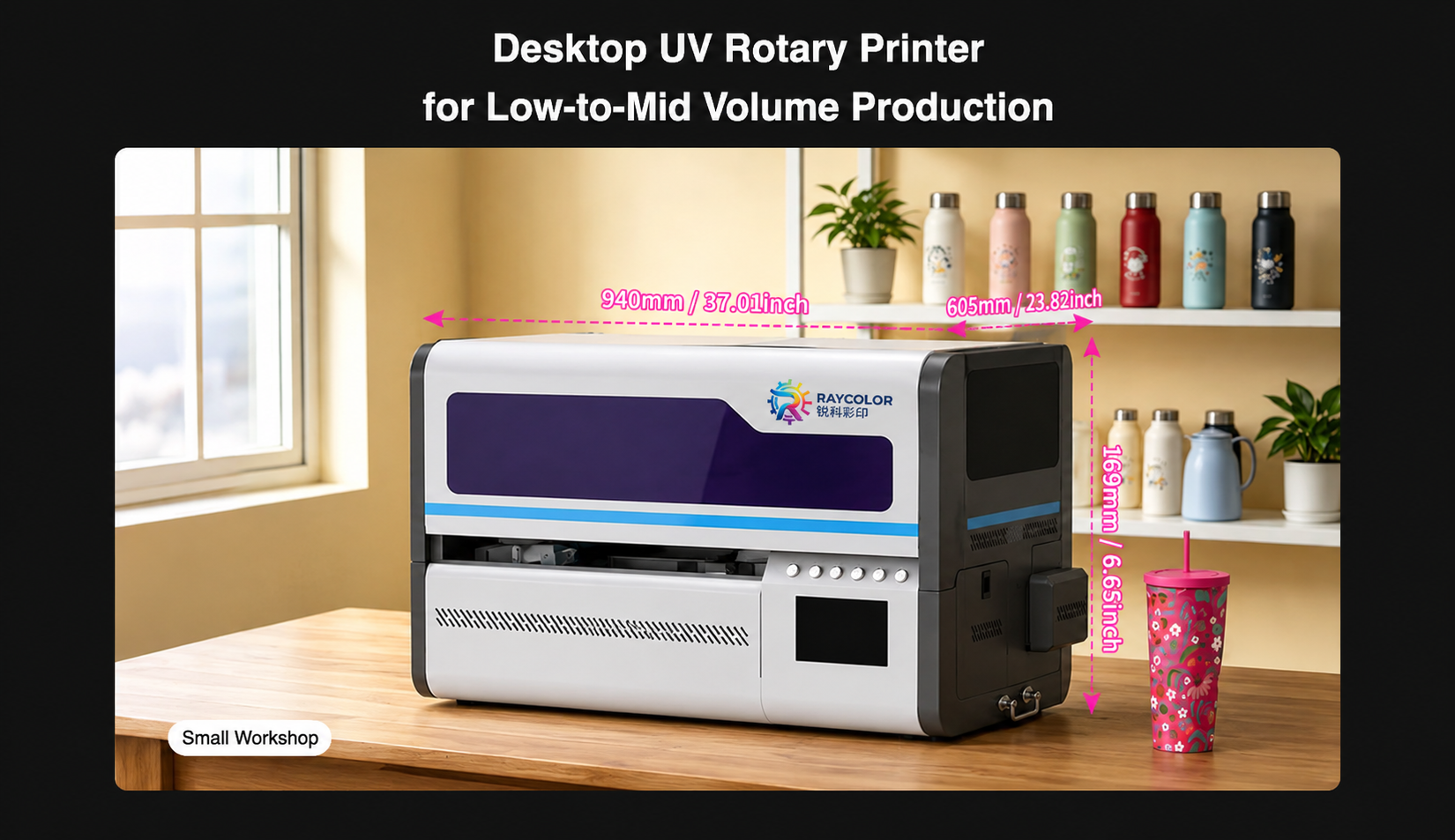

Compact desktop UV rotary printer dimensions for a small workshop — **Small-Workshop Footprint**Space-efficient dimensions make the system practical for studios and growing print shops.

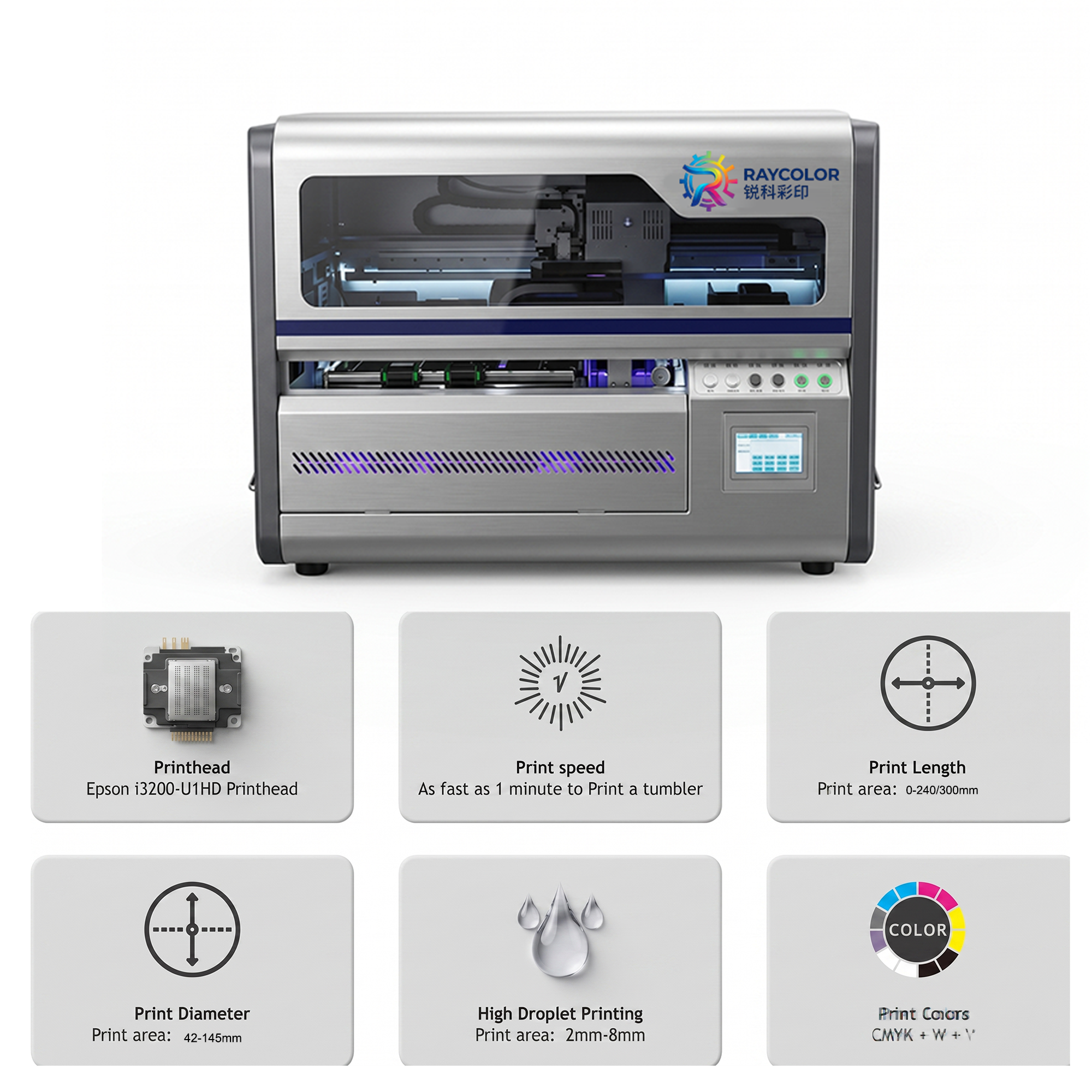

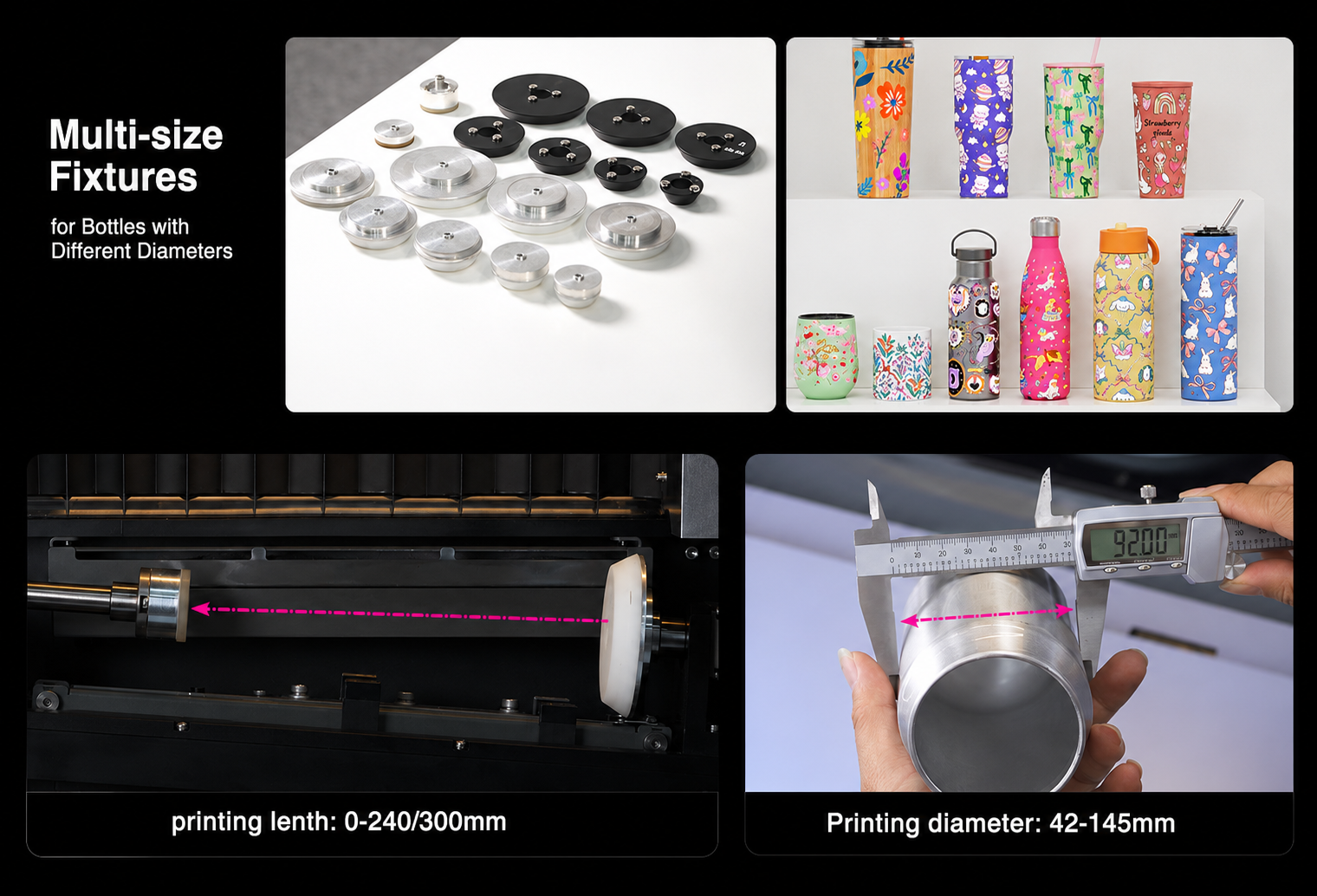

Multi-size bottle fixtures with 42 to 145 mm diameter and up to 300 mm print length — **Flexible Product Sizes**Interchangeable fixtures support different bottle diameters and print lengths.

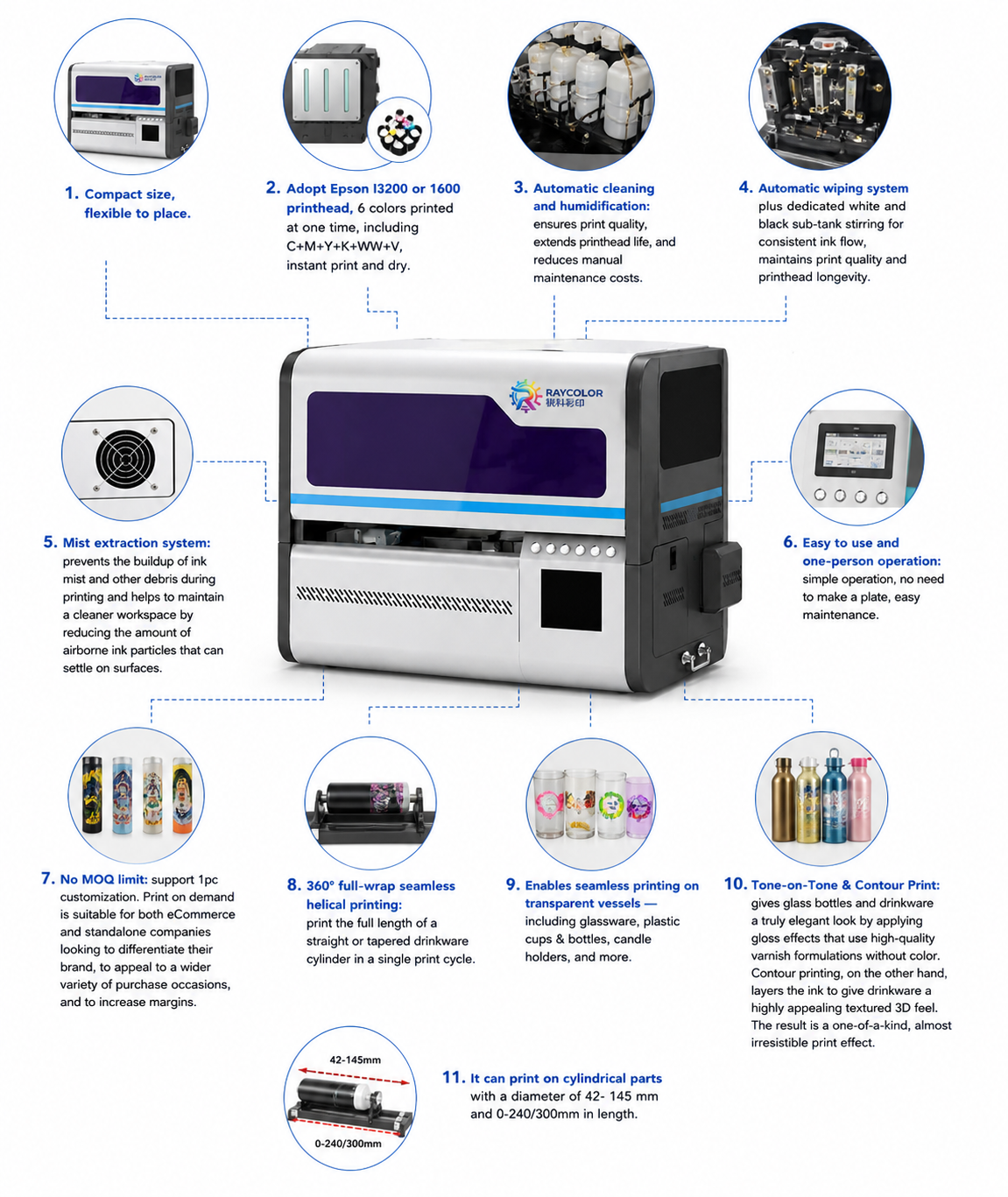

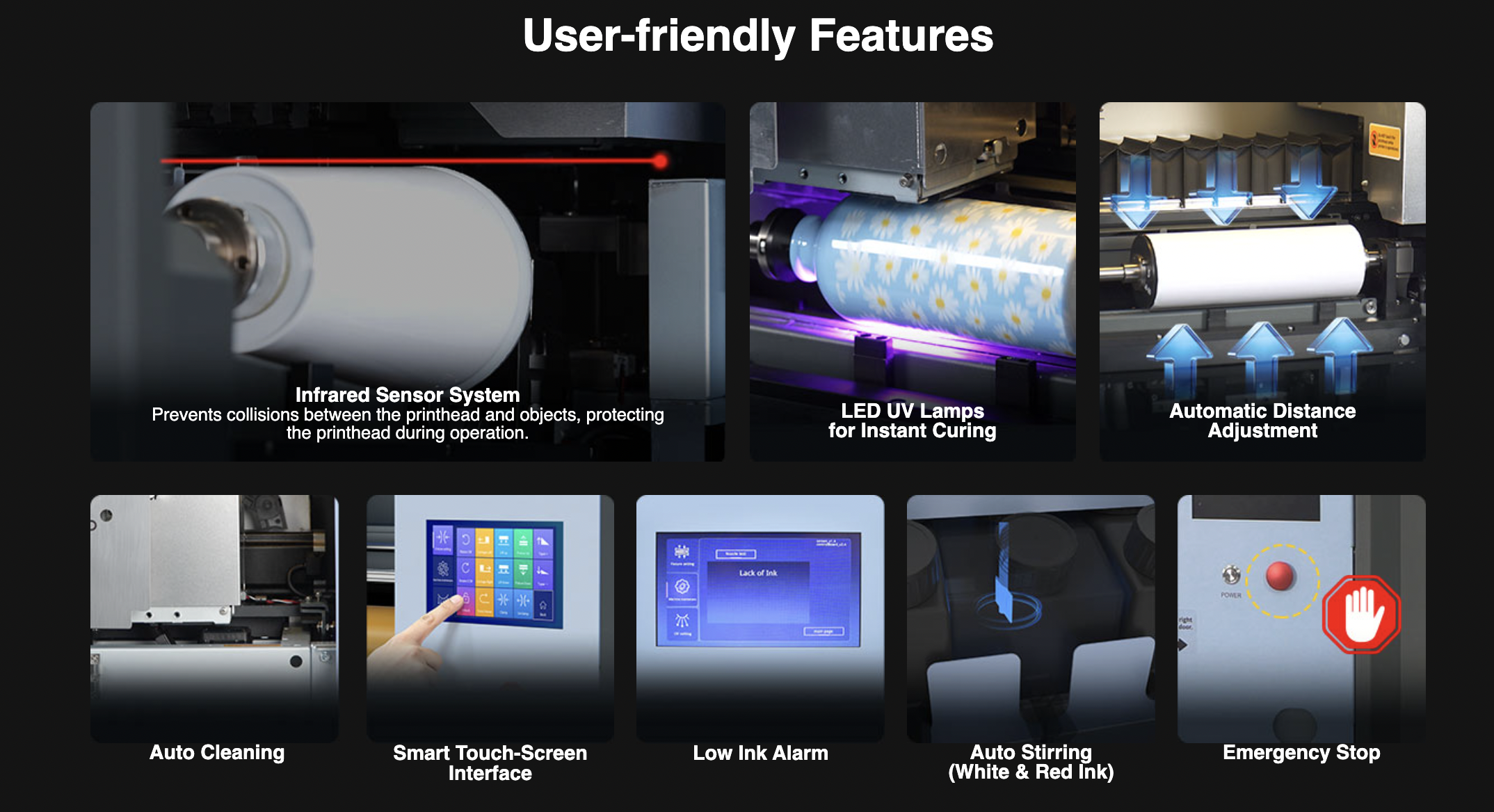

Infrared sensor, LED UV curing, touch screen and automatic controls on a cylinder UV printer — **Easy Daily Operation**Automatic cleaning, UV curing, safety sensing and touch-screen controls simplify production.

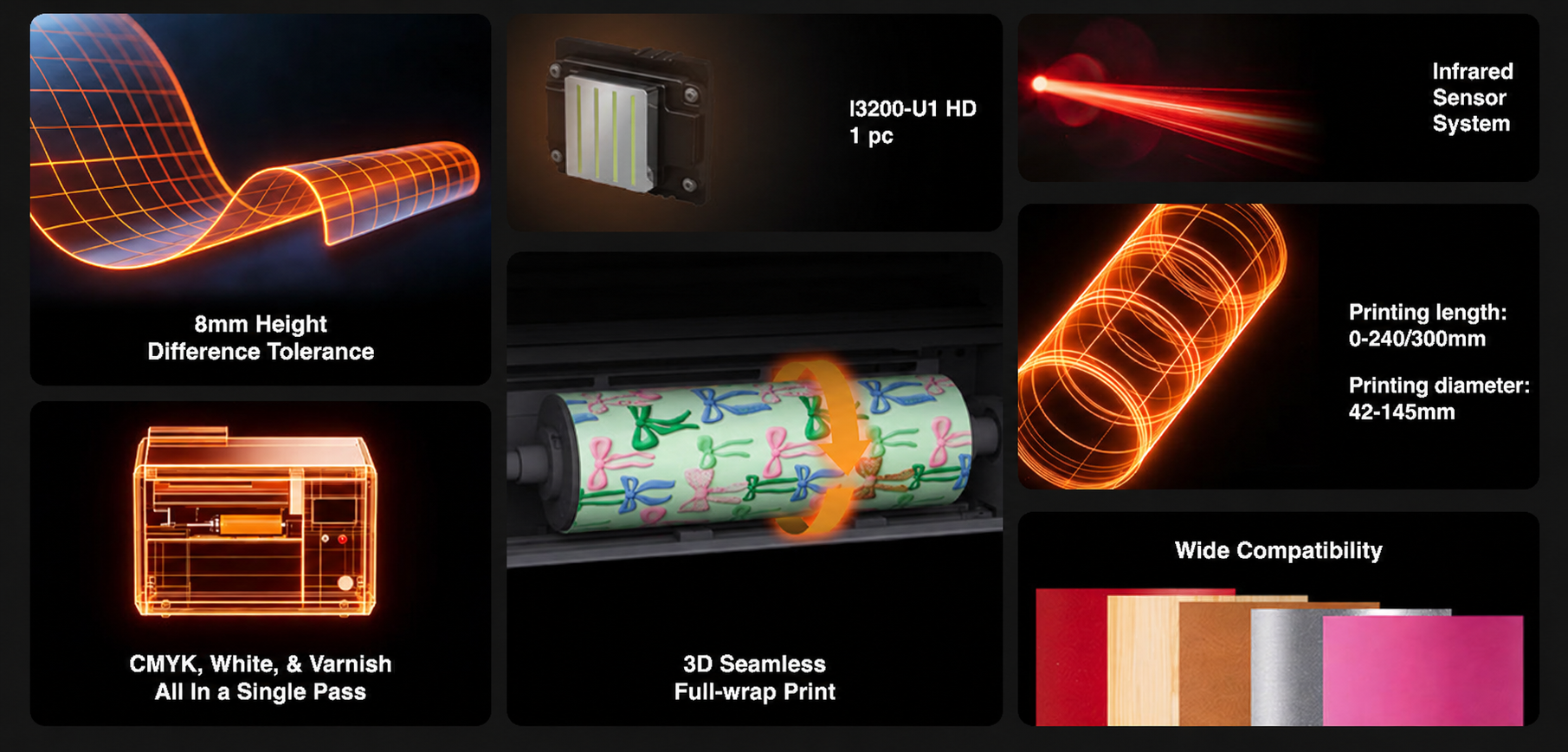

Desktop UV rotary printer features including seamless full-wrap printing and infrared sensing — **Seamless 360° Printing**Print CMYK, white and varnish with full-wrap alignment and automatic object sensing.

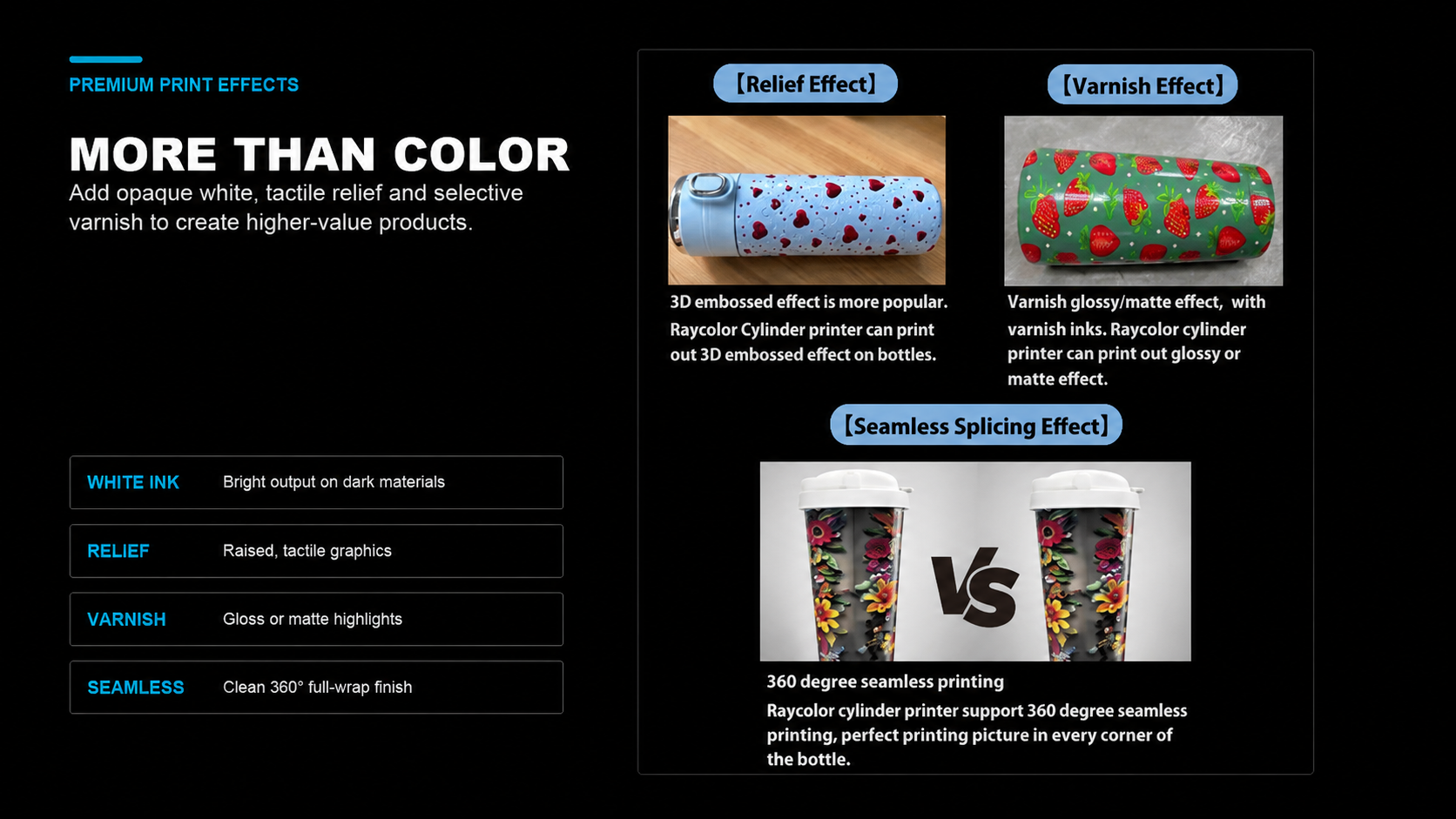

Cylinder UV printer samples showing white ink, embossed relief, varnish and seamless effects — **White Ink, Relief and Varnish**Create opaque layers, tactile graphics, selective gloss and premium decoration effects.

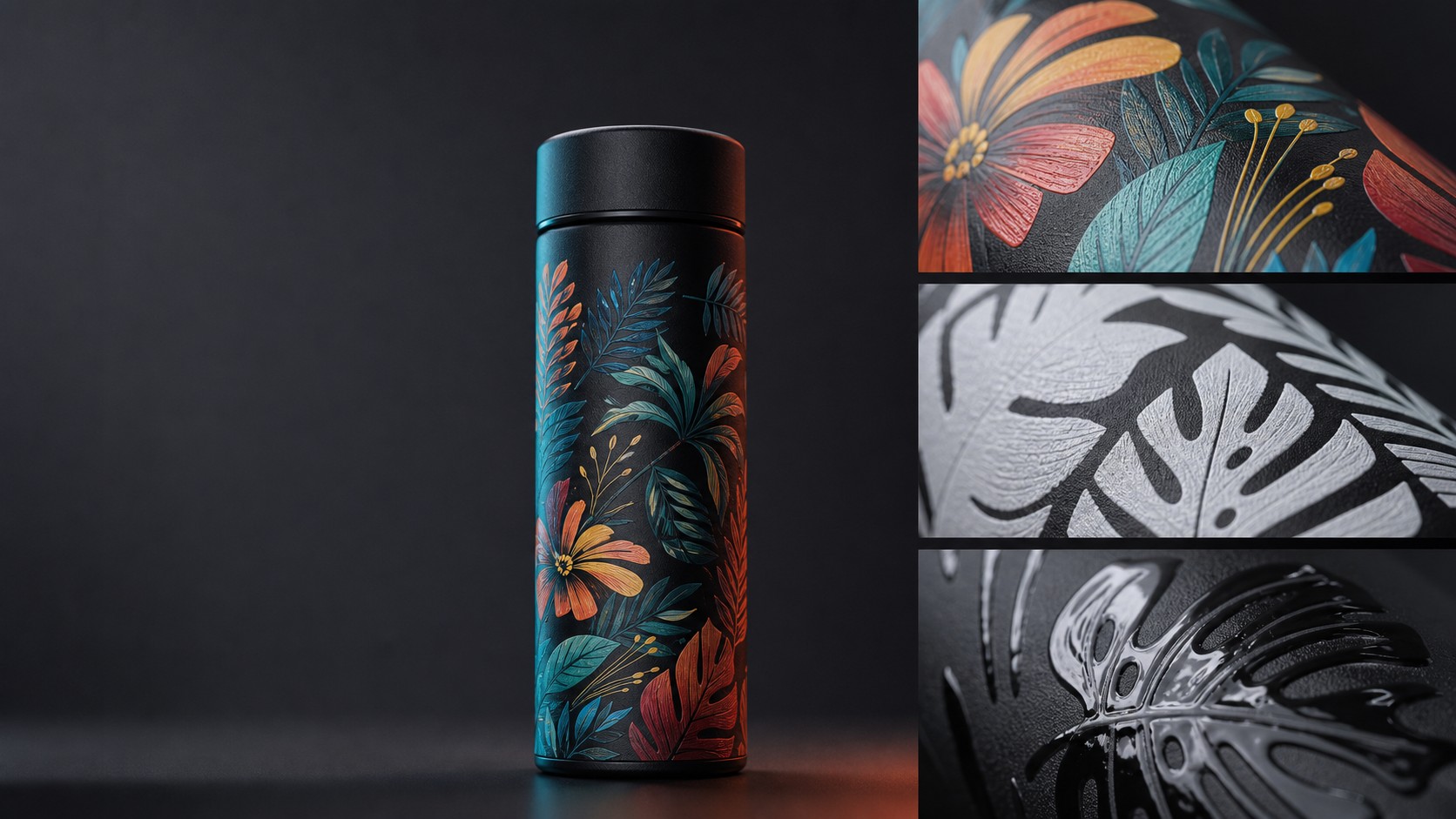

Black bottle with floral 3D relief, white ink and gloss varnish texture — **Detailed Surface Effects**Close-up examples show raised ink, opaque white and glossy varnish on dark drinkware.

Rotary UV printer creating raised 3D texture on uneven and tapered cylindrical surfaces — **Uneven and Tapered Surfaces**Height and taper compensation support textured full-wrap printing on irregular products.

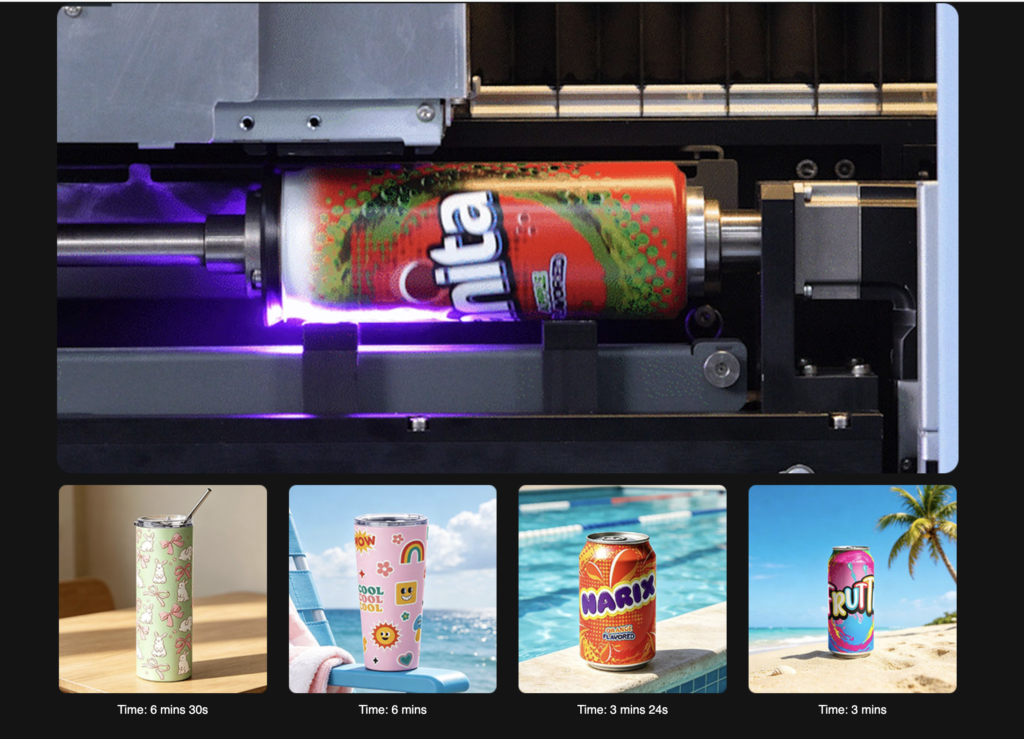

Rotary UV printer printing cans and tumblers with sample production times — **Practical Print Times**Representative production times help estimate short-run can and tumbler output.

Cylinder UV printer applications on aluminum, metal, plastic, bamboo and ceramic products — **Compatible Materials**Print on aluminum, coated metal, plastic, bamboo and ceramic after adhesion testing.

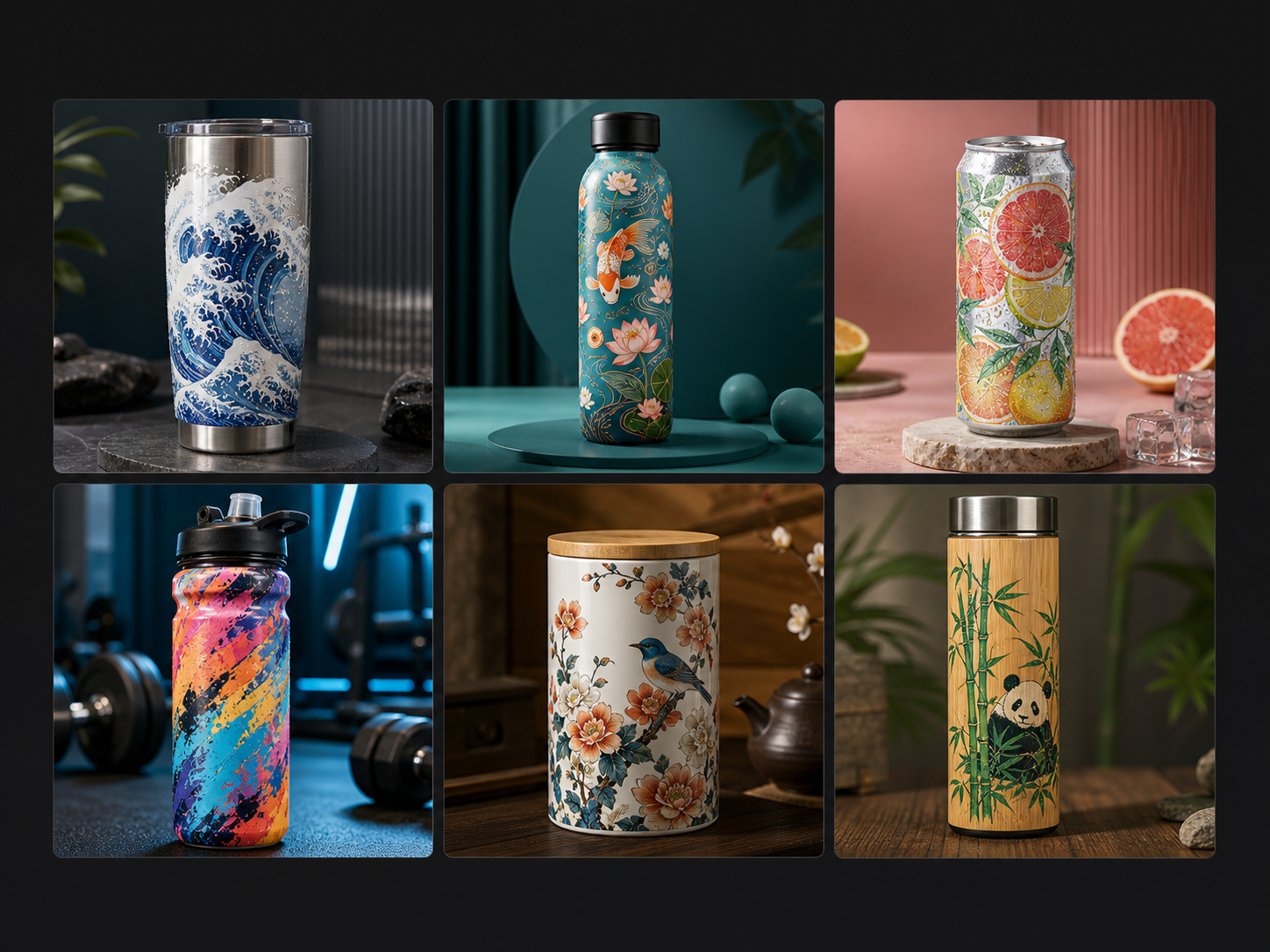

Custom printed metal tumblers, water bottles, cans and bamboo containers — **Finished Product Range**Examples include tumblers, sports bottles, cans and bamboo containers.

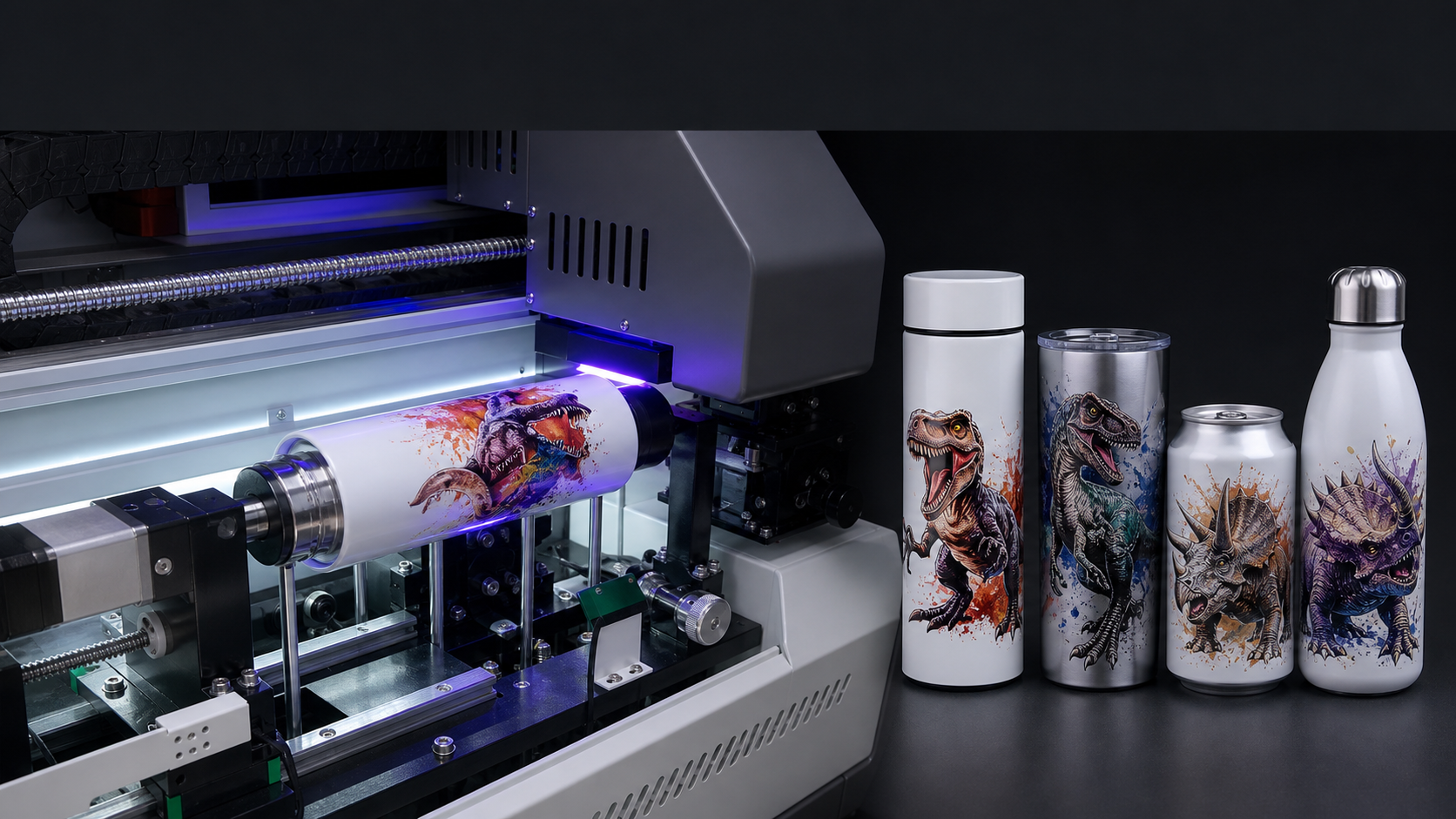

Benchtop cylindrical printer producing full-color designs on bottles and aluminum cans — **Direct Bottle and Can Printing**Vivid direct-to-object printing eliminates labels for many cylindrical applications.
