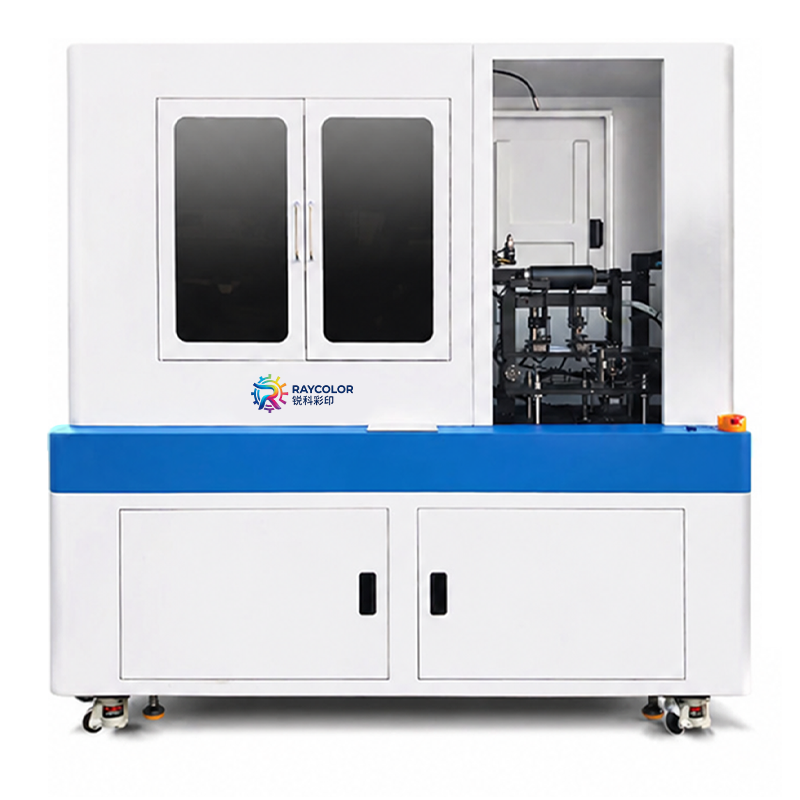

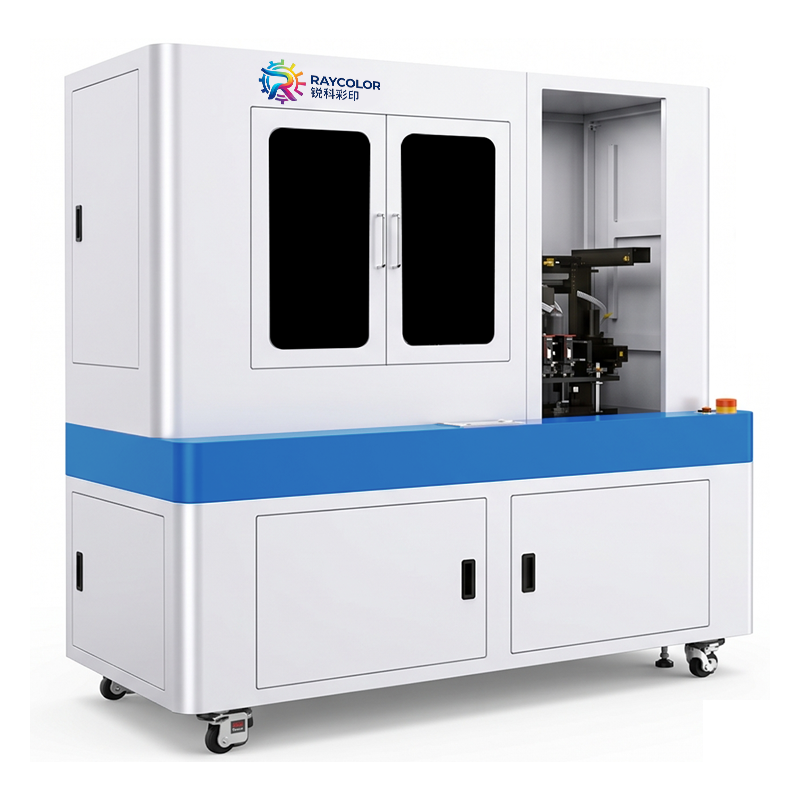

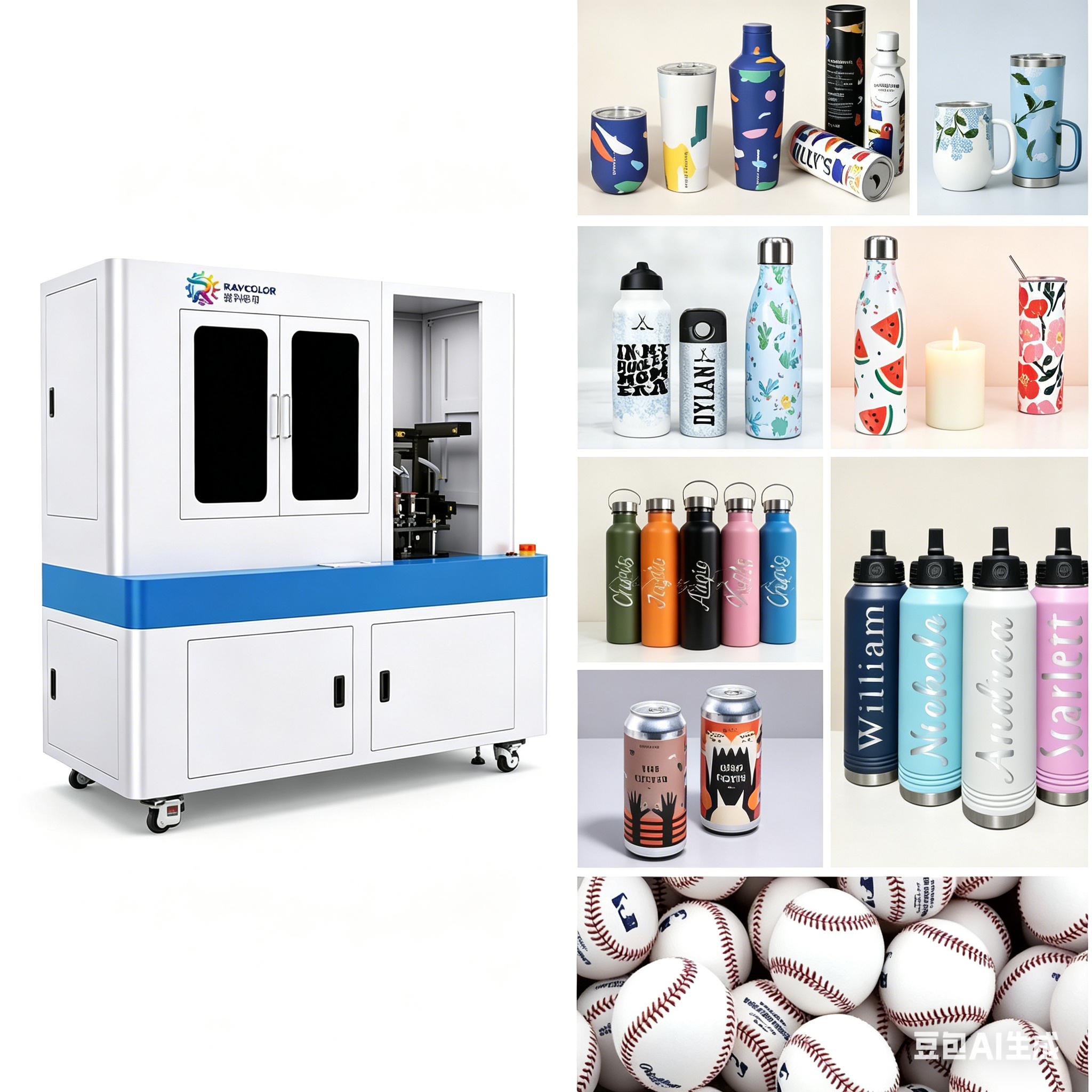

Industrial 360° UV Printing for Bottles, Tumblers and Cylindrical Packaging

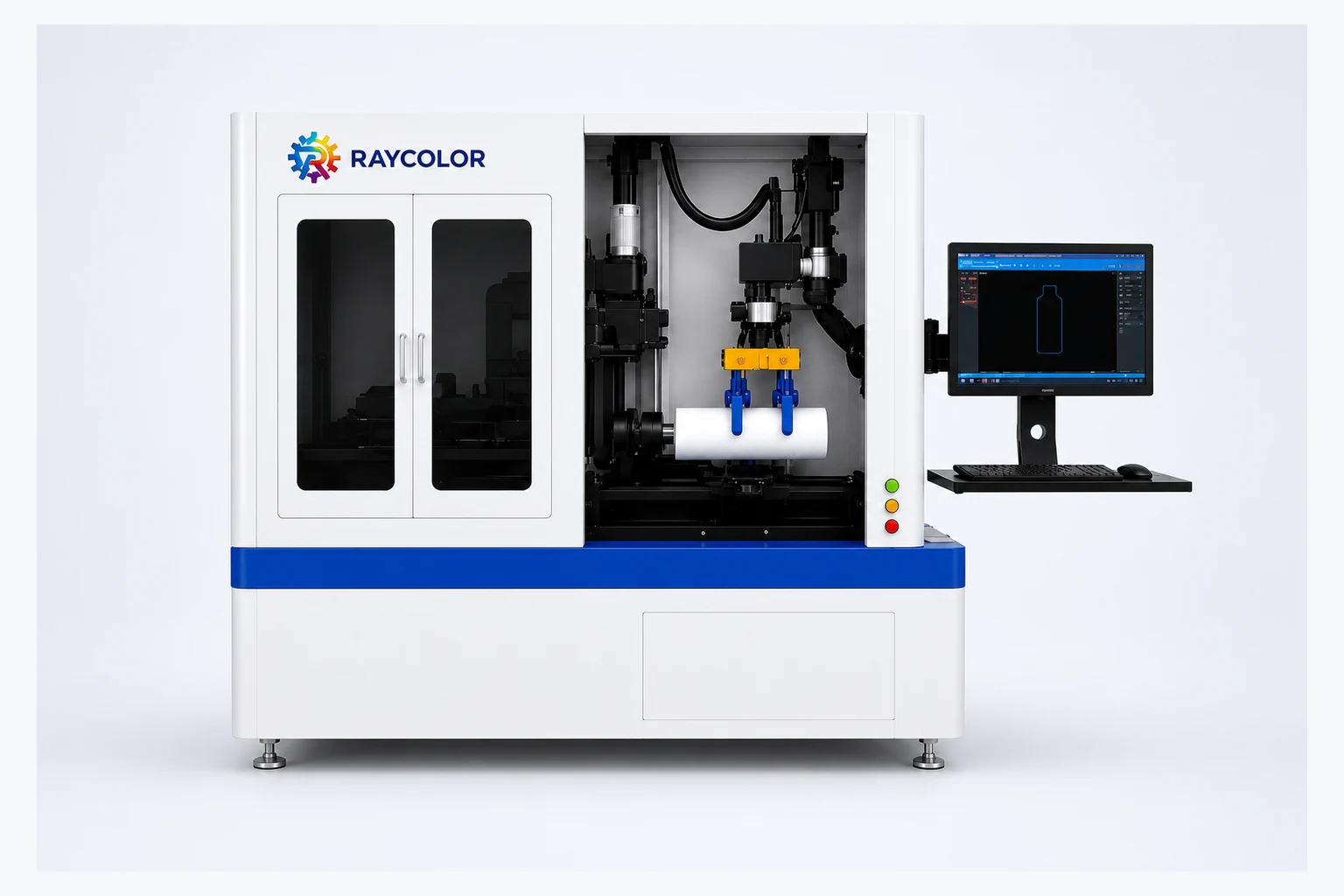

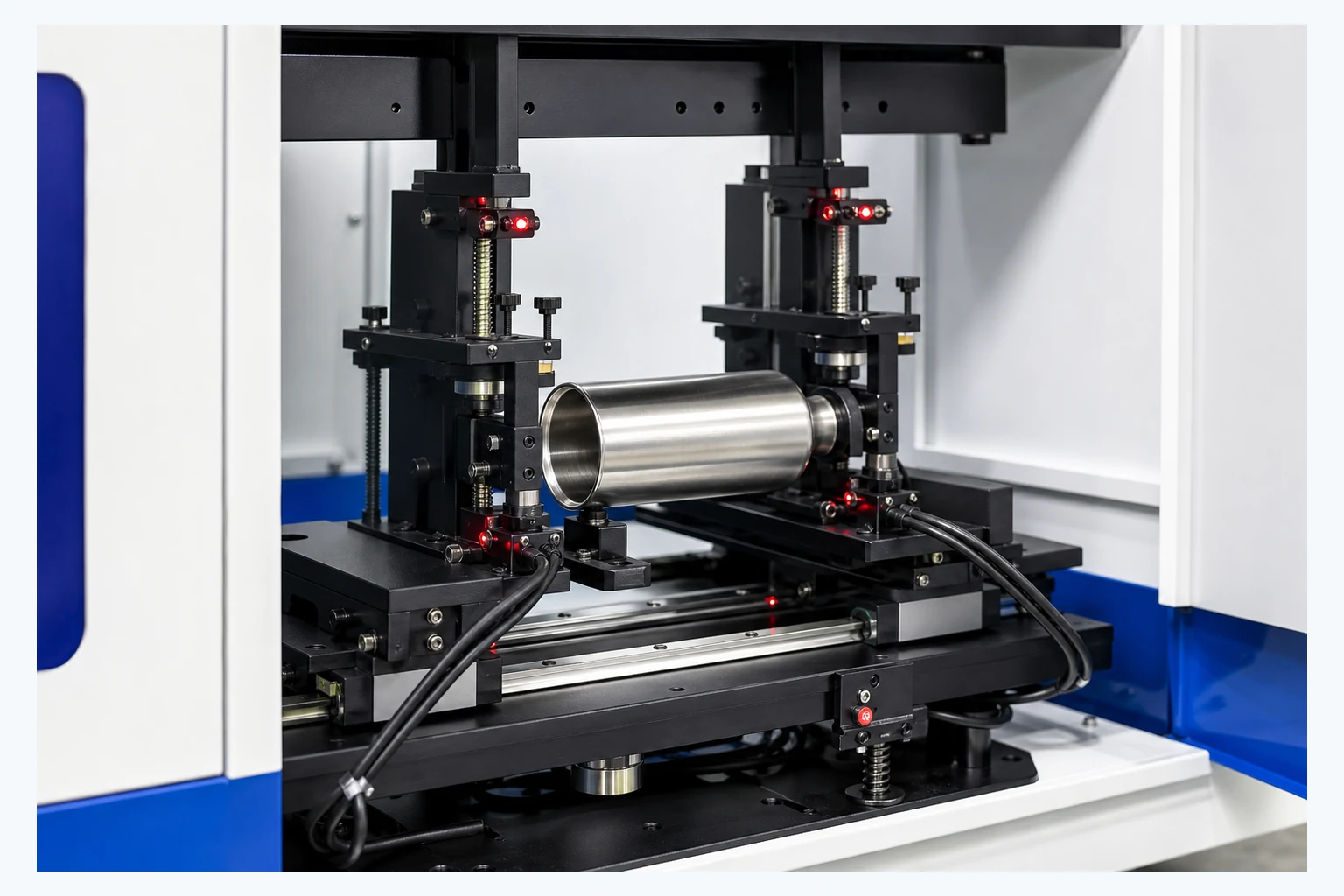

The Raycolor industrial cylindrical UV printer is built for production teams that need stable, high-resolution direct-to-object printing on straight, tapered and selected irregular products. Ricoh G6 printheads, intelligent sensing and optional automation support make it suitable for drinkware, cosmetics, packaging and promotional product manufacturing.
Why Choose This Industrial Cylinder UV Printer?
Industrial Cylinder Printer ROI Calculator
Adjust the production and cost assumptions below to estimate output, operating profit, payback time, and first-year return on investment.
Your Production Assumptions
Defaults use the 40 oz tumbler example. Change every value to match your local costs, order volume, product, and selling market.
Key Specifications
Review the complete technical specifications below, including dimensions, ink, software and operating requirements.
| Category | Specification | Details |
|---|---|---|

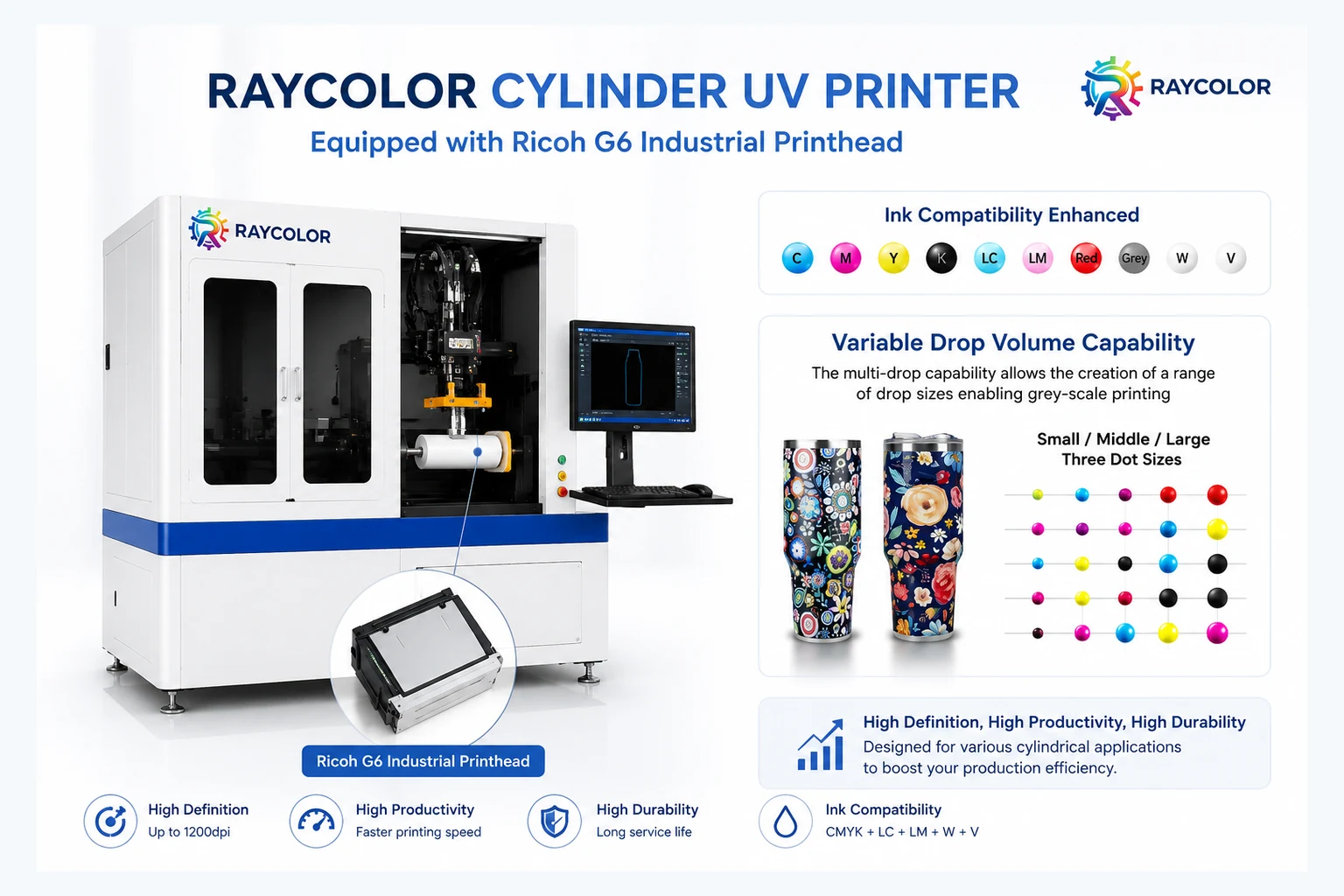

| Print System | Printhead model | Ricoh G6 |
| Printhead quantity | 4-5 pcs | |
| Print resolution | 600 × 1800 dpi | |
| Ink drop | 5 pl | |
| Print speed | As fast as 30 seconds per tumbler, depending on artwork and settings | |
| Print mode | Color, white and varnish | |
| Ink configuration | C, M, Y, K, Lc, Lm, W, V | |

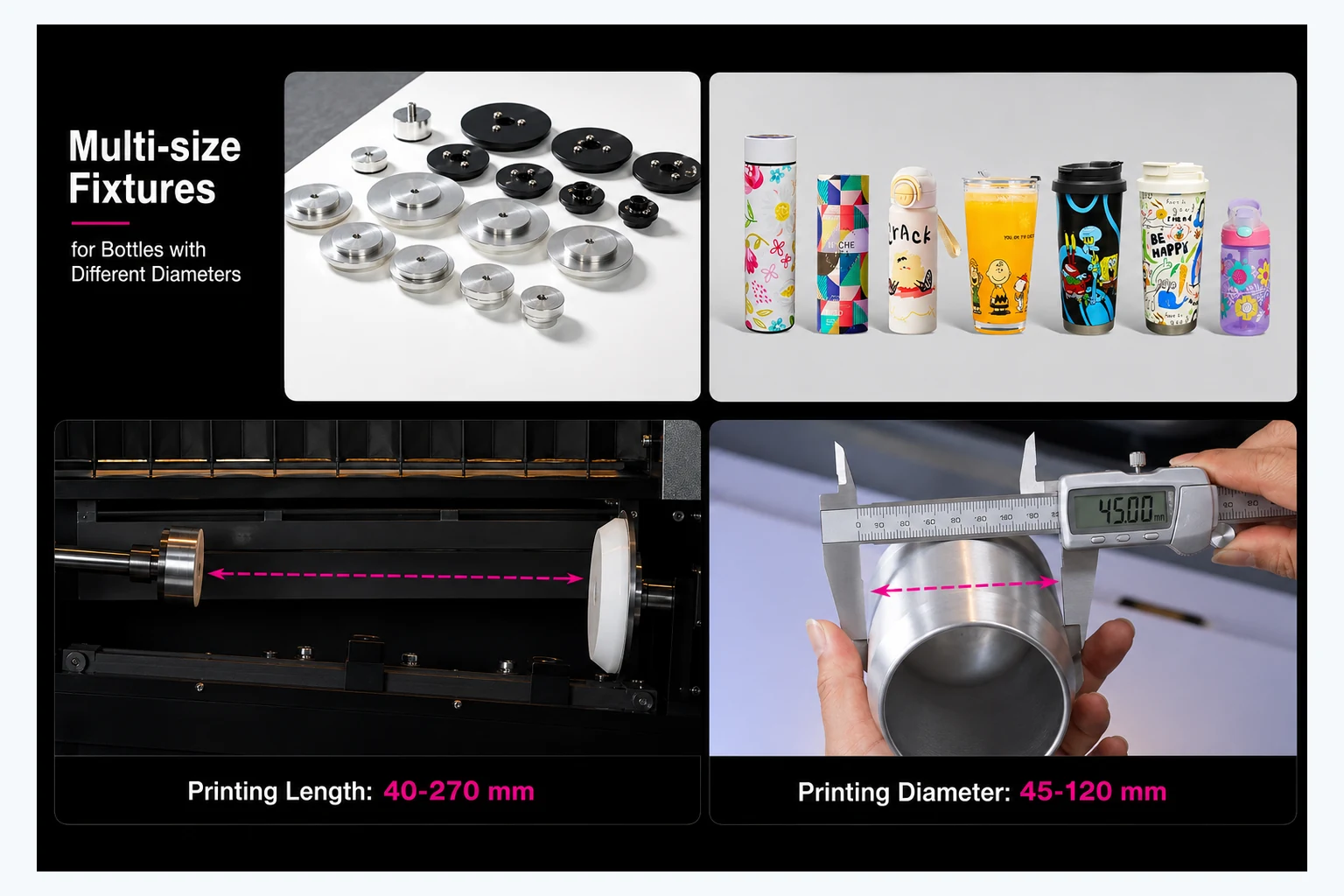

| Machine Parameters | Print diameter | 45-120 mm |
| Print length | 40-270 mm | |
| Print taper | 0-5° | |

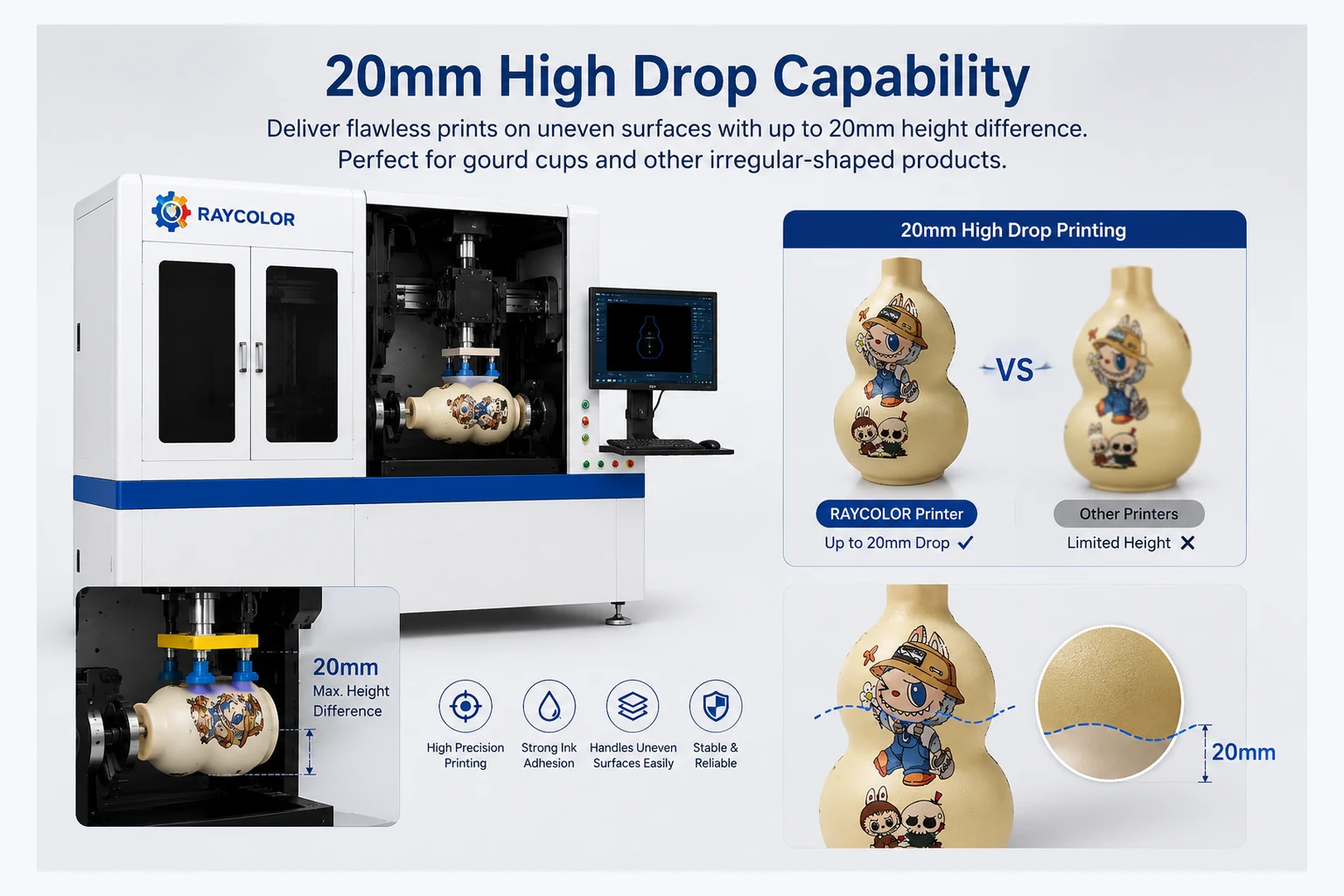

| High-drop printing | 2-20 mm | |
| Curing system | LED UV lamp | |
| Ink | VOC-free UV-curable ink | |
| RIP software | RIIN | |
| Materials | Glass, metal, plastic, ceramics and more, subject to adhesion testing | |
| Typical products | Bottles, tumblers, cups, flasks, cans, candles and selected special shapes | |
| Dimensions | Machine size | 1950 × 870 × 1800 mm |
| Packing size | 2000 × 920 × 2100 mm | |
| Net/gross weight | 450 / 630 kg | |
| Operating Requirements | Power | AC 220/110 V, 10 A, 50 Hz, grounded |
| Temperature | 20-30°C | |
| Humidity | 30-60% | |
| Environment | Clean, low-dust indoor environment |
Request a Configuration Recommendation
For an accurate quotation, please share your product material, diameter, length, taper angle, artwork coverage, required output and whether you need automatic loading or unloading. Sample testing is recommended before production.

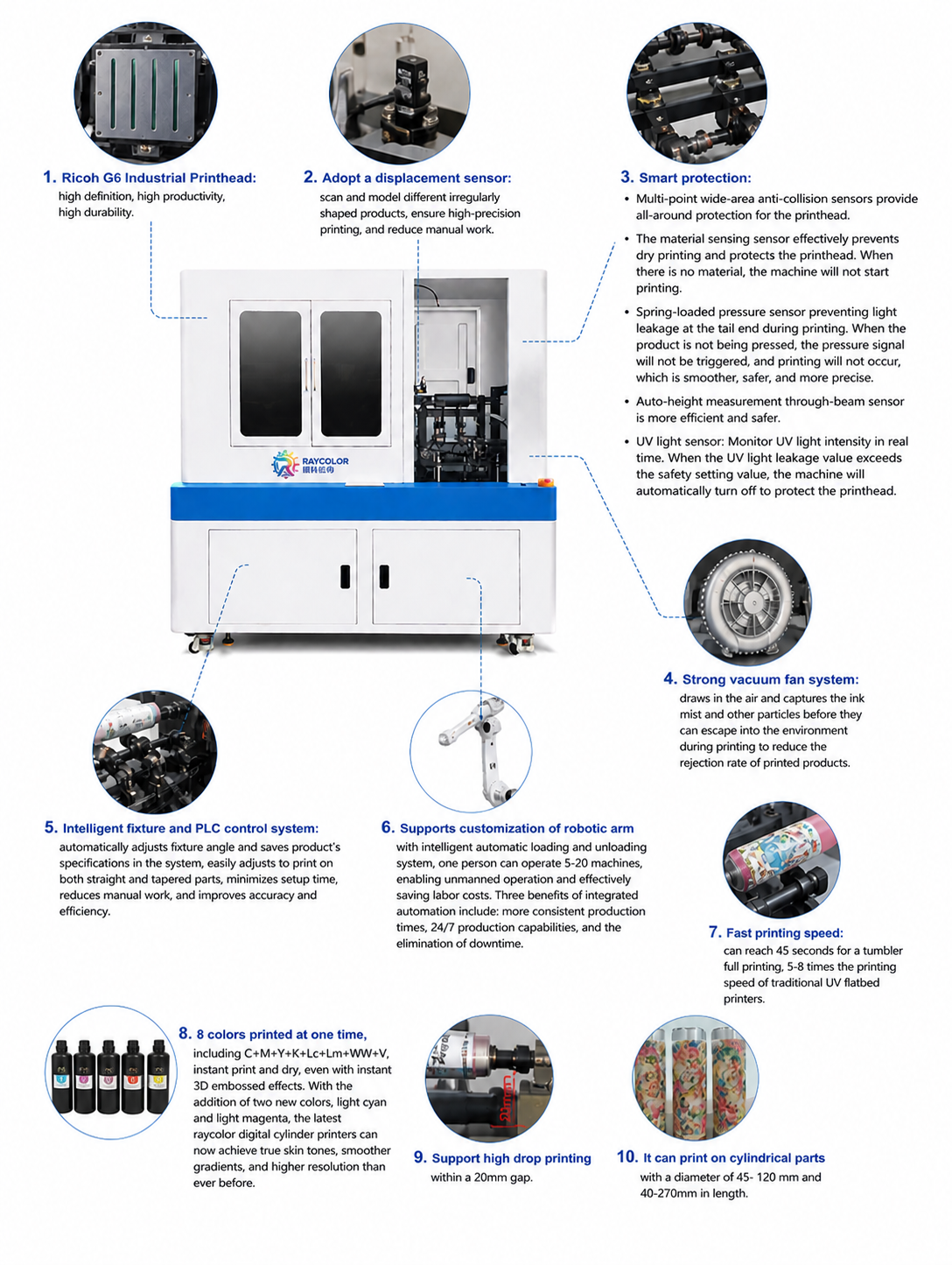

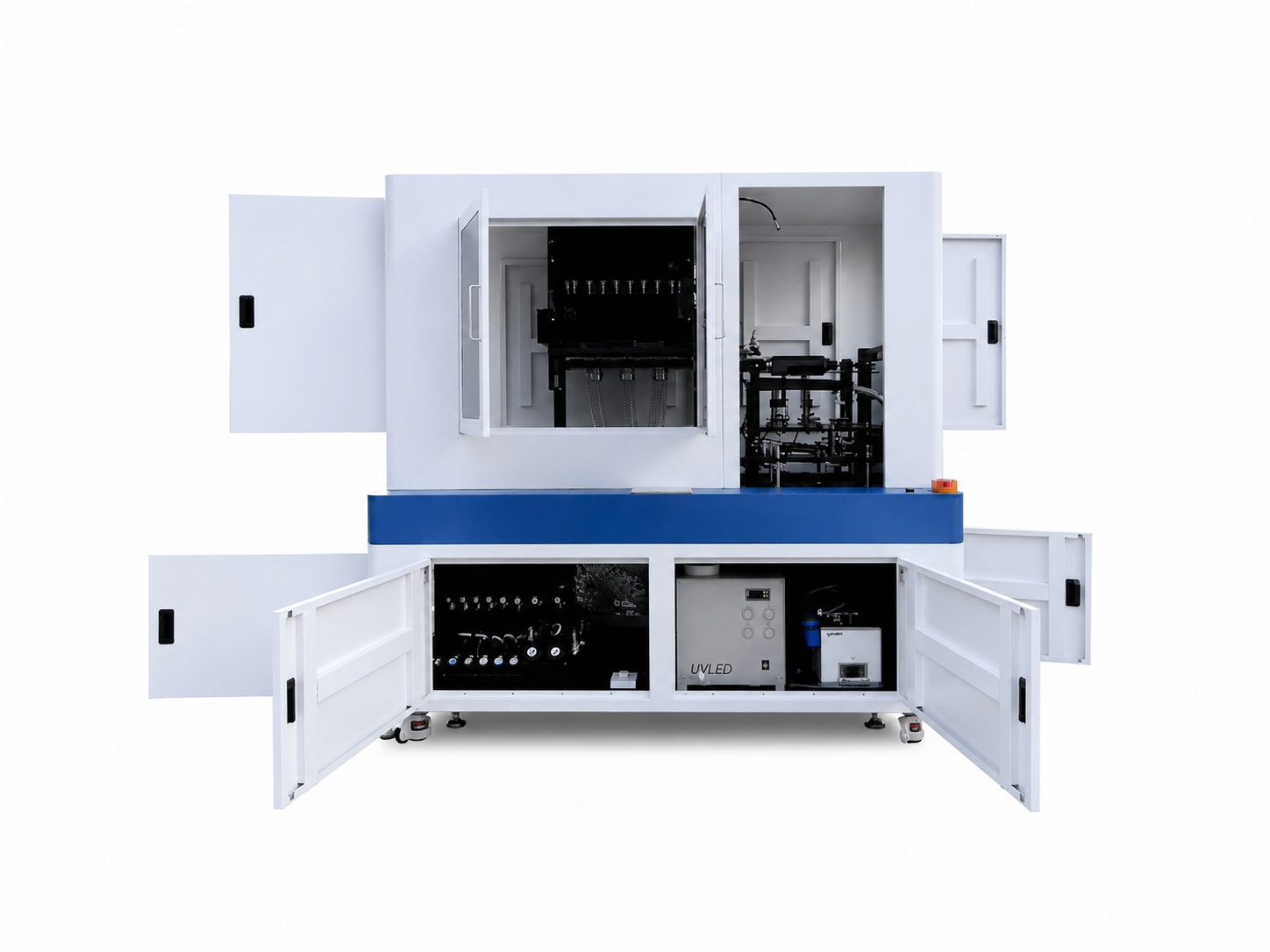

Industrial Cylinder UV Printer Features and Applications

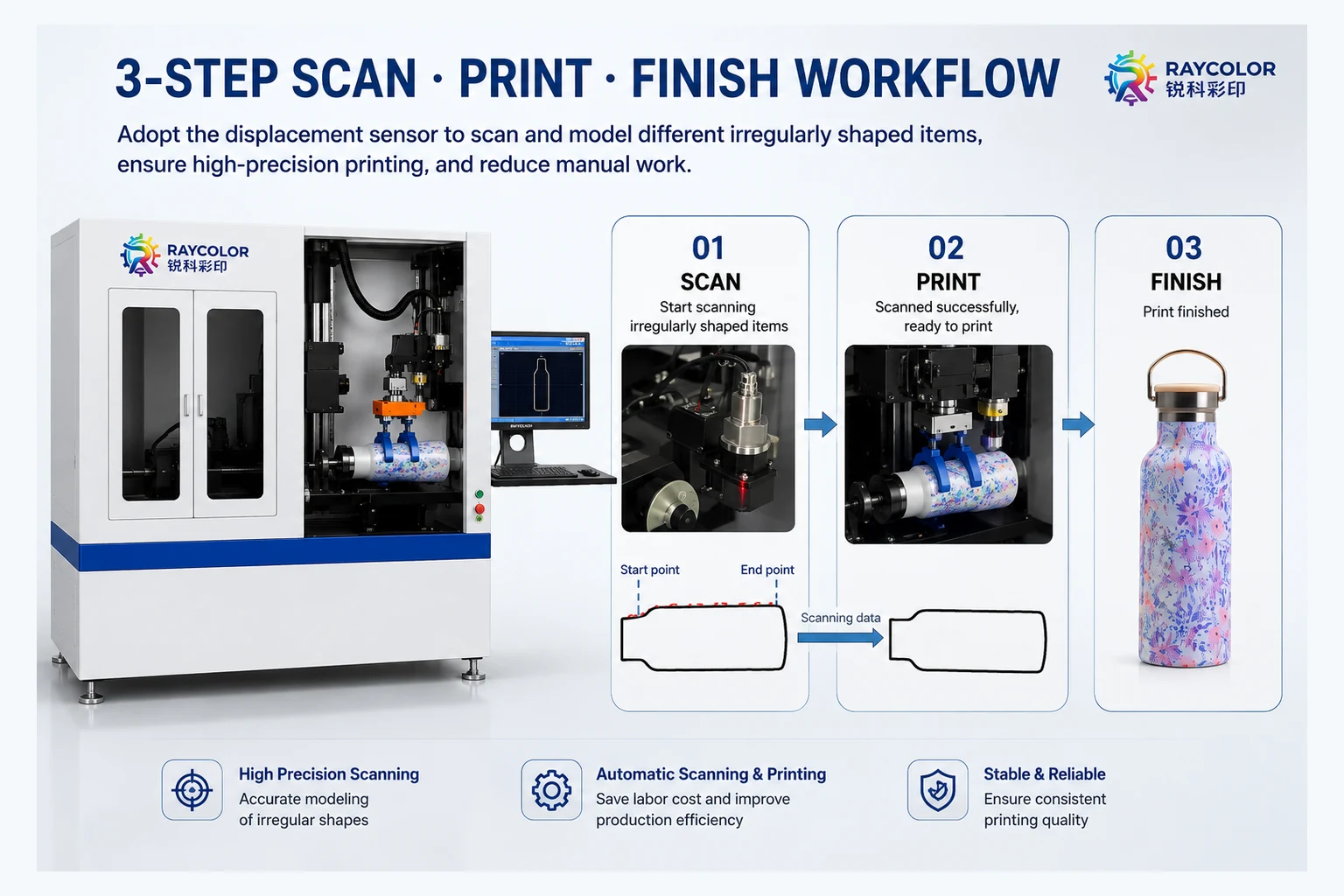

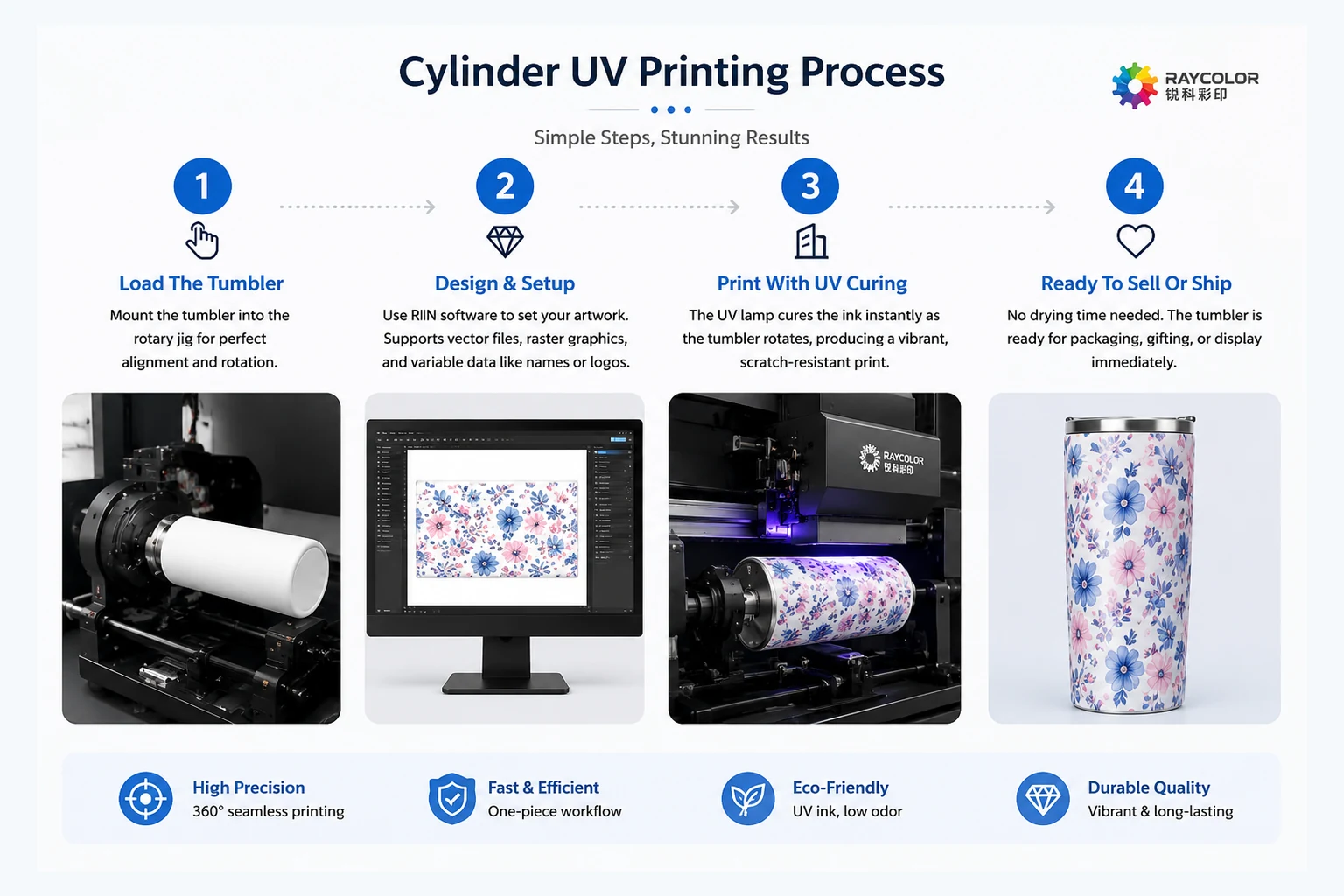

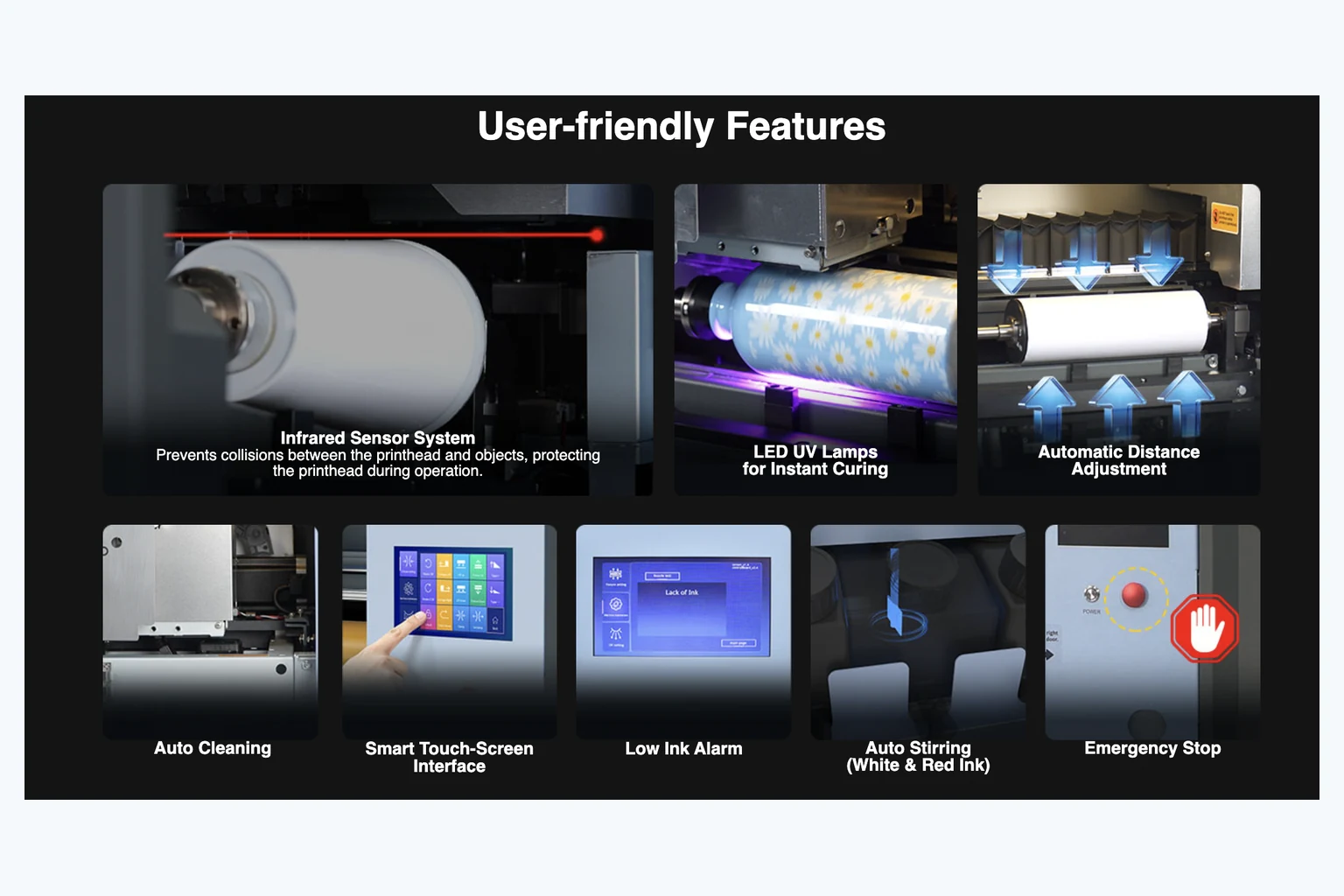

Review the machine configuration, printing range, production workflow, safety features and finished-product effects. Select the final configuration according to product dimensions, material, artwork and required daily output.
Discuss Your Products and Production Target
Send us the product material, diameter, length, taper angle, artwork coverage and target output. We can recommend a suitable fixture, ink configuration and automation option, then arrange sample testing before production.
Get a Quote
Industrial Buyer FAQ
Industrial Cylinder UV Printer FAQ
Answers to the questions buyers usually ask before configuring an industrial cylindrical printing line.
What products can this industrial cylinder UV printer print?
It is designed for direct 360-degree printing on cylindrical and selected tapered objects such as tumblers, bottles, cans, cups and cosmetic containers. Raycolor recommends a sample test because coating and surface energy affect adhesion.
Can it print white ink and varnish?

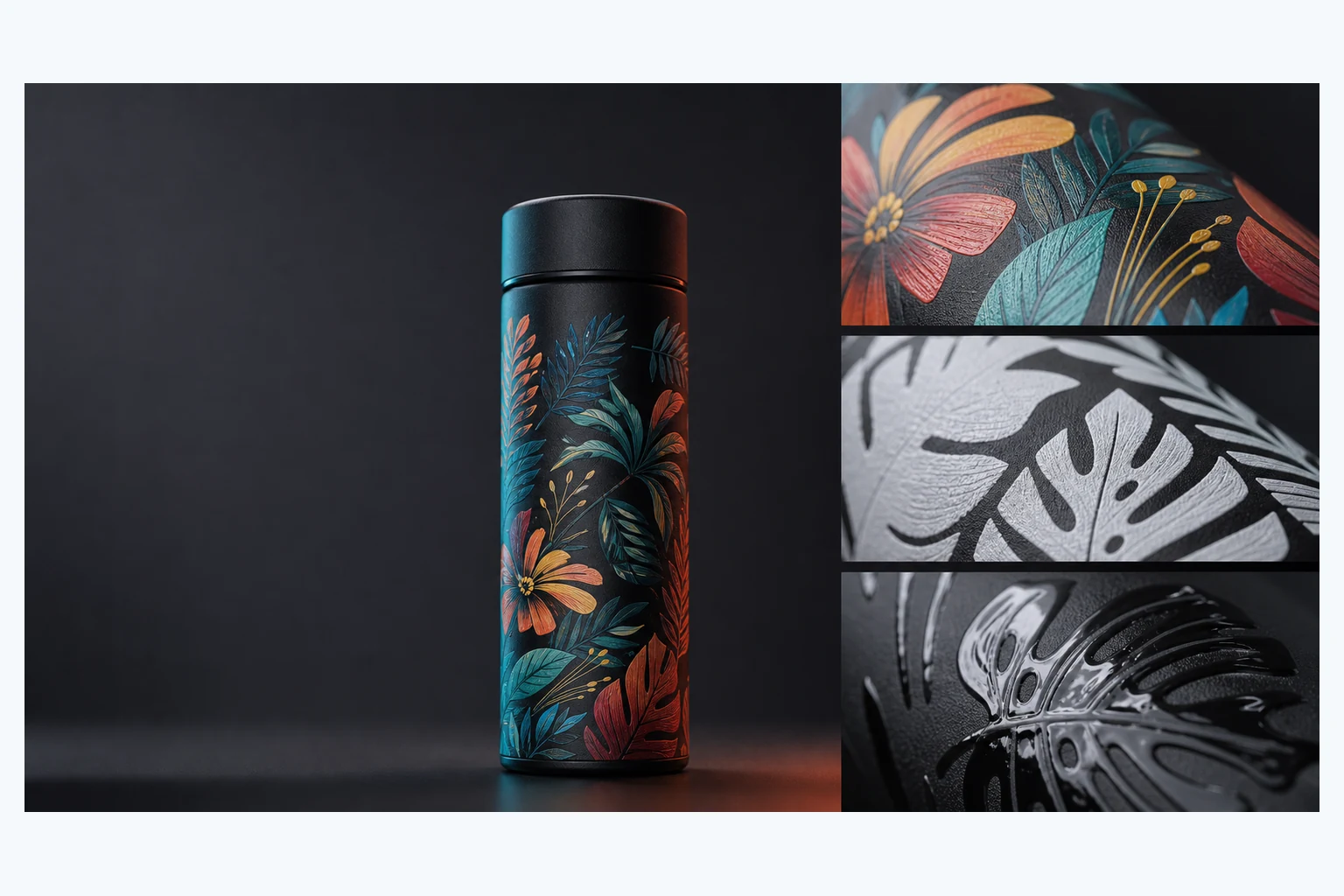

Yes. Available ink configurations can include CMYK, white and varnish for opaque color, selective gloss and raised effects. The final configuration should be confirmed against your product and output requirements.
How is the correct machine configuration selected?
Send the product material, diameter range, length, shape, artwork and target daily output. Raycolor can then recommend the fixture, printhead configuration, ink setup and pretreatment process.
Can Raycolor test my products before I order?
Yes. Buyers can send representative samples for print testing. Photos, videos and printed samples can be provided so that print quality and adhesion are checked before machine configuration is finalized.
What installation and after-sales support is available?
Remote installation guidance, operating training, troubleshooting and production support are available. Confirm the warranty, spare-parts package and on-site service requirements in the quotation.
Match the Right Cylinder UV Printer to Your Product
If you found this page by searching for a bottle printer, cylinder UV printer or cylindrical printing machine, start with the application closest to your product. These pages help buyers compare fixtures, materials and production needs before requesting a quote.
- Water bottle UV printer for sports bottles and stainless bottles
- Cosmetic bottle printer for skincare and packaging lines
- Golf ball printer for promotional gifts and tournament branding
- Paint bucket printer for industrial pails and coating containers

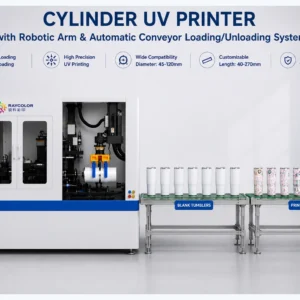

- Automatic industrial cylinder UV printer for higher-volume production
Ready to test your product? Send your product size, material, artwork and daily output target to Raycolor. We can recommend the right cylinder UV printer configuration and arrange sample printing before you order.
