Transparent products such as plastic cups, acrylic tumblers, glass bottles, cosmetic containers, and clear packaging are becoming increasingly popular in the beverage, promotional gift, and packaging industries. However, UV printing on transparent cylindrical objects presents a unique challenge that many manufacturers struggle with: UV light leakage during printing.
If not properly managed, UV light leakage can seriously affect print quality, production efficiency, and overall operating costs.
Why Transparent Products Cause UV Printing Problems
Most cylindrical UV printers position the UV curing lamp directly above the print area.
When printing opaque products such as stainless steel tumblers, aluminum cans, ceramic mugs, or painted bottles, the UV light is reflected or absorbed by the surface, allowing the ink to cure properly.
However, transparent products behave differently.
Materials such as:
- Clear plastic cups
- Acrylic tumblers
- PET bottles
- Glass bottles
- Transparent cosmetic containers
allow UV light to pass through the material. The UV light can penetrate the object and reach areas where uncured ink is being deposited.
This often leads to:
- Premature ink curing
- Poor ink adhesion
- Rough surface texture
- Reduced image quality
- Inconsistent colors
- Printing defects on curved surfaces
For high-quality 360° cylindrical printing, controlling UV light leakage becomes essential.
Traditional Industry Solution: Insert Dark Fillers Inside the Product
To prevent UV light from passing through transparent products, many manufacturers use a simple but labor-intensive method.
They place a dark-colored object inside the transparent product before printing.
Common fillers include:
- Black foam cylinders
- Rubber inserts
- Dark plastic tubes
- Customized blocking fixtures
The dark material absorbs UV light and prevents it from penetrating the transparent wall.
While this method works, it introduces several production challenges.
Drawbacks of Manual Light Blocking
1. Additional Labor Cost
Operators must manually insert and remove the filler from every product.
For production volumes of 1,000–2,000 pieces per day, this process becomes extremely time-consuming.
2. Reduced Production Efficiency
Loading and unloading fillers significantly slows down the printing workflow.
The actual printing time may only take a few seconds, but handling the inserts adds considerable downtime.
3. Higher Risk of Errors
Incorrect positioning of the filler can lead to uneven curing and print defects.
4. Increased Operating Costs
Manufacturers may need multiple insert sizes to accommodate different product diameters.
This increases tooling and inventory costs.

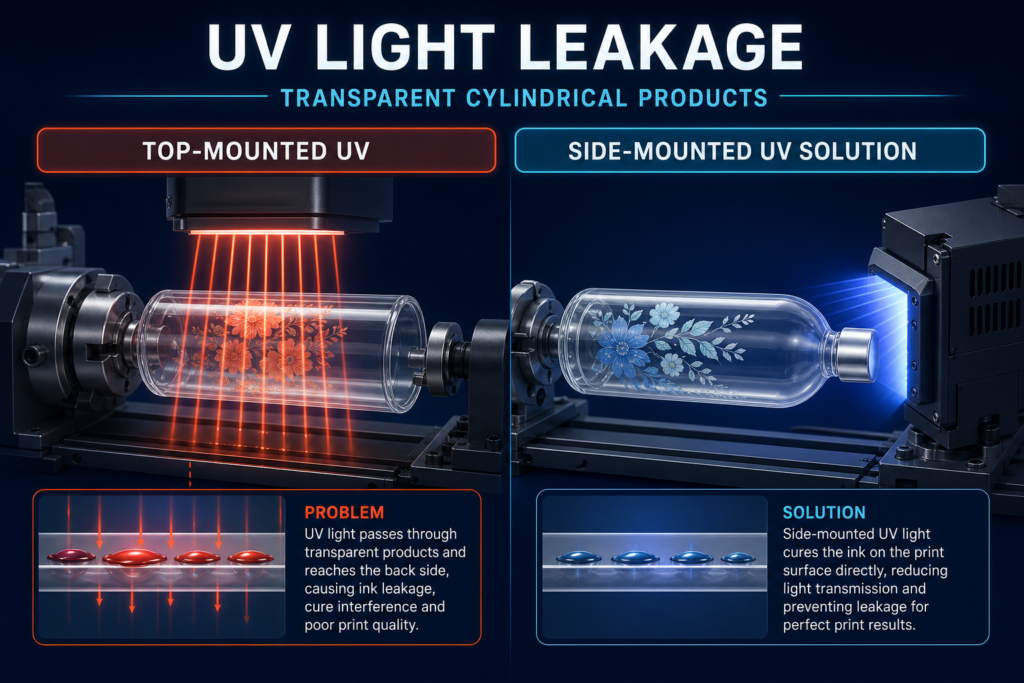

The Raycolor Solution: Side-Mounted UV Lamp Technology
To eliminate the need for manual light blocking, Raycolor has developed a customized solution for transparent cylindrical printing.
Instead of placing the UV lamp directly above the product, the UV curing system can be positioned on the side of the printing area.
This design dramatically reduces the amount of UV light passing directly through the transparent material.
Key Benefits
No Internal Light-Blocking Material Required
Operators no longer need to insert black foam or dark fillers into each product.
This simplifies production and saves labor.
Higher Productivity
Without the extra loading and unloading process, manufacturers can significantly increase daily output.
Better Print Consistency
The controlled curing angle minimizes unwanted light penetration and improves print quality.
Reduced Labor Costs
The production process becomes more automated and operator-friendly.
Ideal for Large-Volume Production
For customers printing thousands of transparent cups or bottles every day, the productivity improvement can be substantial.
Typical Applications
Raycolor’s side-UV curing solution is particularly suitable for:
Transparent Drinkware
- Clear plastic cups
- Acrylic tumblers
- PET beverage containers
- Promotional drinkware
Cosmetic Packaging
- Transparent lotion bottles
- Shampoo bottles
- Skincare containers
- Perfume bottles
Industrial Packaging
- Clear chemical bottles
- Transparent storage containers
- Specialty packaging products
Promotional Gifts
- Customized clear cups
- Personalized acrylic products
- Event giveaway containers
Customized Solution for Your Production Needs
Different transparent products have different shapes, wall thicknesses, and material properties.
For this reason, Raycolor offers customized UV lamp configurations based on the customer’s application requirements.
Combined with:
- Automatic Taper Compensation
- Intelligent PLC Control System
- Flexible Fixtures
- High-Precision Rotary Printing Technology
Raycolor cylindrical UV printers can achieve high-quality printing on cylindrical, conical, and irregular transparent products while maintaining production efficiency.
Conclusion
Transparent cylindrical products create unique challenges in UV printing because UV light can pass through the material and cause premature curing.
While traditional manufacturers often rely on dark fillers inserted inside each product, this method reduces efficiency and increases labor costs.
Raycolor’s customized side-mounted UV curing solution eliminates the need for manual light blocking, improves productivity, and delivers more consistent print quality for transparent cups, bottles, and packaging containers.
For manufacturers seeking a more efficient way to print transparent cylindrical products, Raycolor provides a practical and scalable solution for industrial production.
Discuss your application: Contact Raycolor for sample testing and a cylindrical UV printer recommendation.
